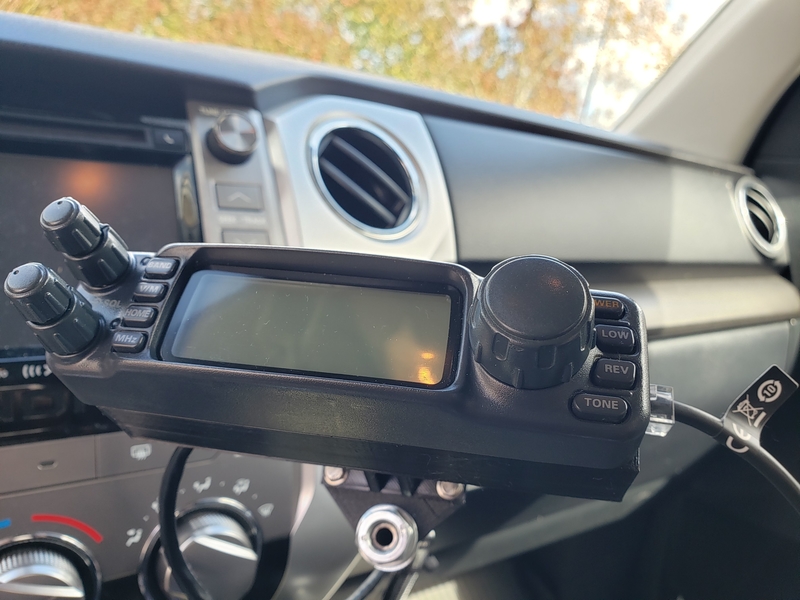

3D parts that will allow you to remotely mount your Yaesu FT-7100 or FT-7100M VHF/UHF amateur radio head. It may also work fine with similar radios. Hinge bolt is M6. The eight plate bolts are M4. The flat piece has a 10mm hole for mounting to a goose neck arm. The piece with the 10mm hole you should use 100% infil. The two hinges could be mounted any way you like. This would hold up better printed in either PETG or ABS to be more thermal resistant (heat of the day inside your auto). The .stl called base_plate_10mm is the same as ft7100_base_goose v3 except it is .5mm thicker (3mm total). There is now an alternately designed base that the head piece sits in .
The file called FT7100_locks_final.stl is the one you want for the 7100 and 7100M.
Loading prints...
Yaesu ft-7100 Amateur Radio Mount
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
Files Included
8 downloadable files:
