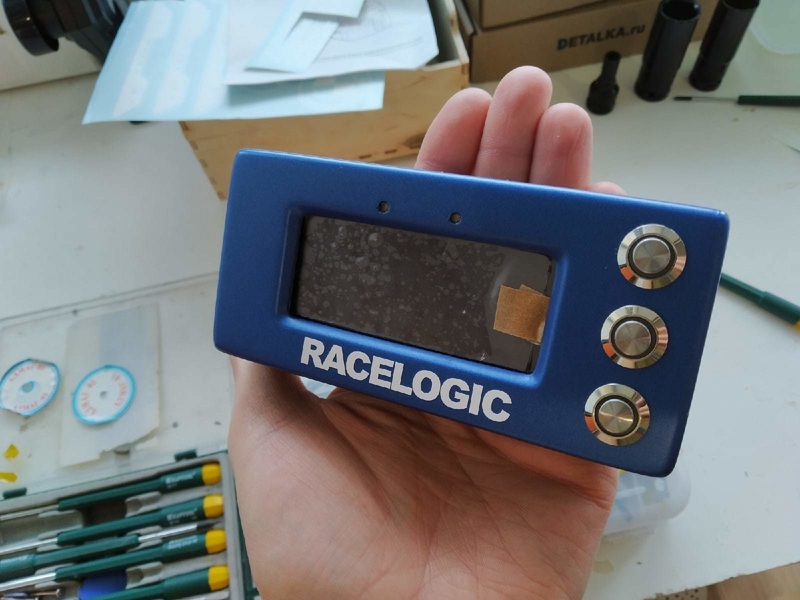

Racelogic vBox Laptimer
$9.00

To assemble the dashboard you need

-12 mm metall buttons X3

-Nextion 3.5 Display

-Arduino pro micro

-WS2812b LEDS X2

nuts brass and screws m2 and m3

The connection WS2812b is made sequentially, each led has a plus, minus, incoming and outgoing contact.

The Arduino pro micro is used for control in bridge mode. How to flash, there is information on the SimHub forum.

https://github.com/SHWotever/S...

Connected according to the scheme

GND => GND

VCC => 5V

RX1 => TX

TX0 => RX

PIN6=> Input pin of 1 led.

It is also highly desirable to install the jumper j1 by soldering contacts.

String responsible for the number of LEDs WS2812B_RGBLEDCOUNT 2

Short demo video

Link to the archive with a map of LEDs and a template for nextion will be sent to the mail. To write on [email protected]

Group with ready-made devices https://vk.com/glcustoms
