Silencer Revolution 250 mm .177" / 4,5 mm
Free

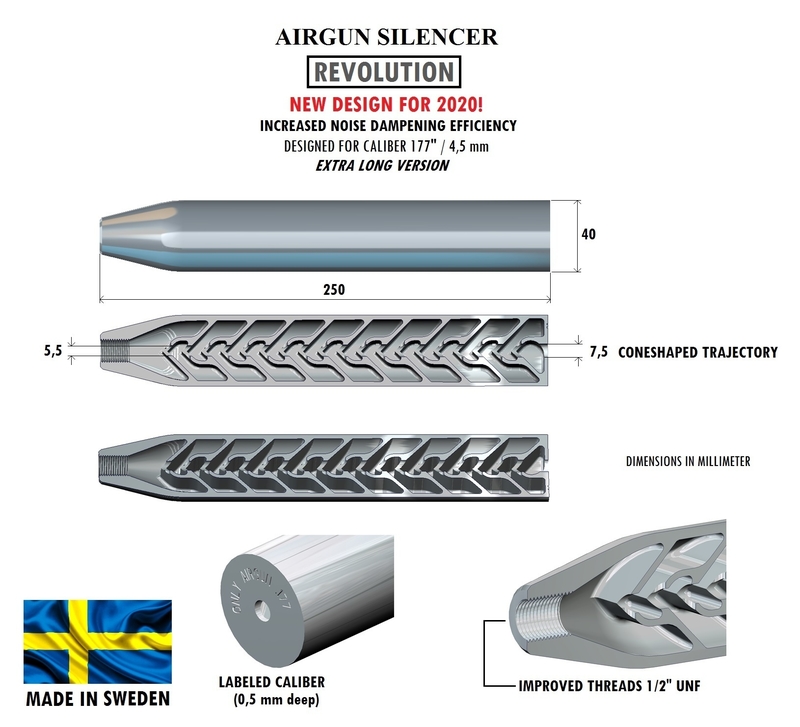

NEW SILENCER DESIGN FOR 2020! We are happy to present our new silencer “Revolution” with unmatched noise dampening results. The baffles redirect more of the air than in previous models and therefore have a higher ratio / more effective baffles contra total volume of the silencer. The total length is 250 mm.

The Revolution silencer are available in calibers:

  • .177” / 4,5 mm
  • .22” / 5,5 mm
  • .25” / 6,35 mm
  • .30” / 7.62 mm

Fully functional, 1-piece strong and dependable construction with superior sound moderating characteristics and repeatable accuracy.

Characteristics:

  • The ½” - 20 UNF thread is improved and is ready to be directly screwed on the barrel after 3D-printing – cleaning with plug tap is not necessary. Screw the silencer on and off five times and the threads are settled in and airtight.
  • The inner hole / trajectory is cone shaped that insures no impacts while maintaining tight tolerances.
  • The front of the barrel is labeled with the intended caliber.
  • The surface of the silencer is smooth for easy spray-painting or attachment of lusterless “hockey tape” / black textile tape.

Constructed in Sweden by experienced machine engineers.

Loading comments...

Loading prints...

Silencer Revolution 250 mm .177" / 4,5 mm

likes
1 collection
Creative Commons Public Domain

The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.

CC0 Licensed under CC0
Files Included

1 downloadable file:

View 3D
revolution_177_40_250mm.stl
STL Model
60.1 MB
File size
Free download - login required
Downloaded: 0 times
