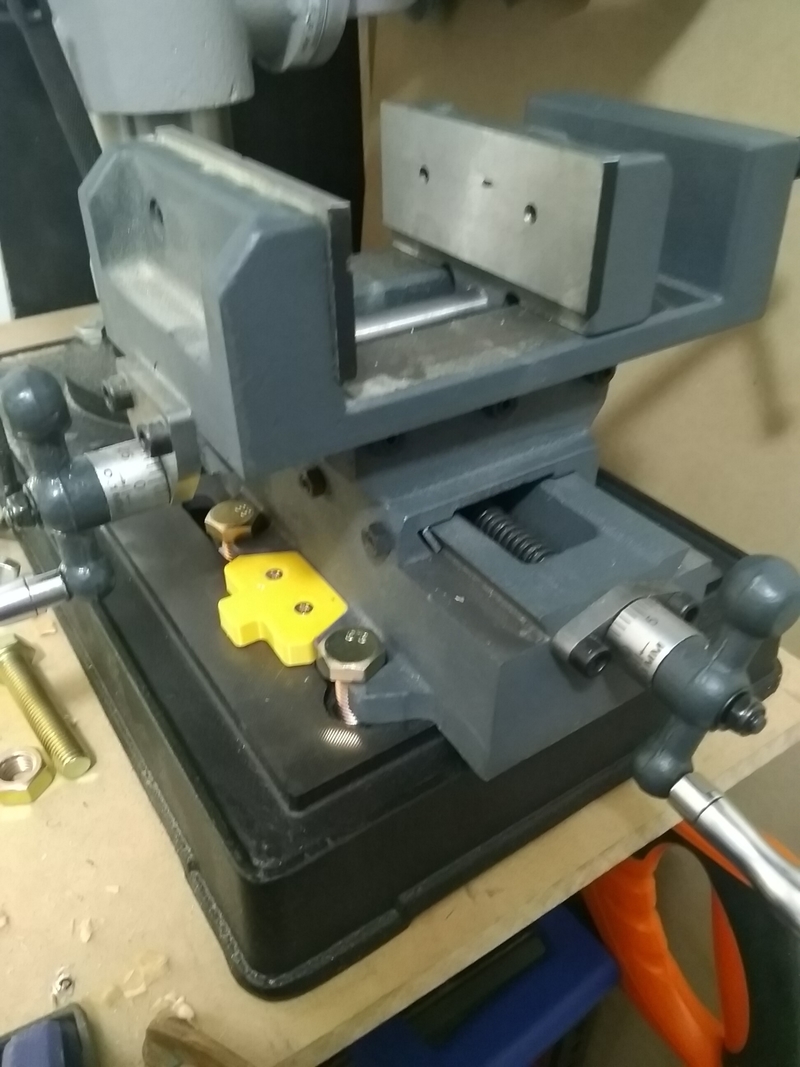

A unique solution for utilising your drill press to its full potential, this design allows your compound vice to mount perfectly on the base of your drill press.
You will need:
- A compound vice as in the pictures (this model is 105mm/4.25")
- 4x M12 x 50mm bolts
- 4x M12 Bolts
- 4x M12 washers
- 4x 7Gx25mm countersunk screws
Notes
*You need to print 2 lots of these files (one for each side)
*Suited for drill press slots spaced 98-100mm apart from each other.
*Some compound vices of this design have varied size tops but usually share the same base.
Recommended Print Settings
These settings are tested and printed with Cura V4.3 and Creality Ender 3.
1.75mm PLA filament
200 degrees C Extruder Temp
50-60 degrees C Bed Temp
Scale : 100%
~6hrs print time (depending on your bed adhesion settings)
Raft ( if desired) 8mm margin
Infill : 50%
Layer height : 0.2mm
perimeters : 7
Speed : 50mm/s
Loading prints...
Drill Press Base Compound Vice Mount
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
