Mini Weather Box for ESP8266 & BME280
Free

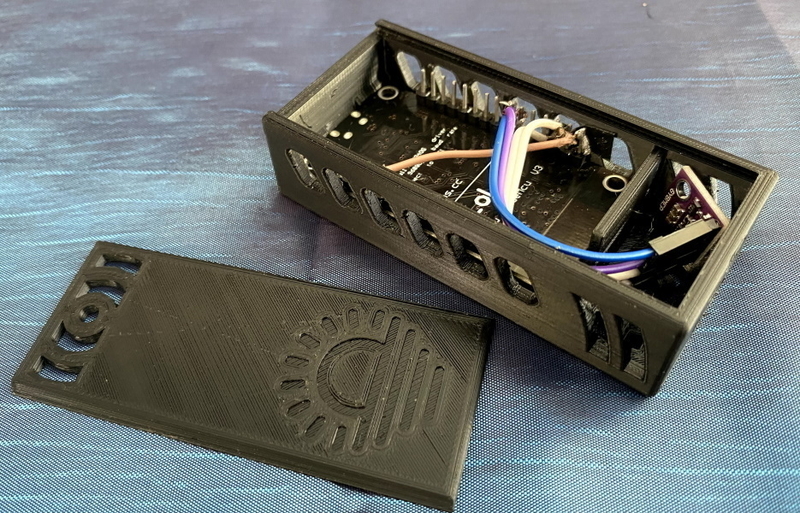

This is a small box for basic weather station that you can put indoor and have it powered with micro USB. The box size fits Lolin NodeMcu v3 ESP8266 and temperature/humidity/pressure sensor BME280 placed in a separate compartment. To keep the box smaller I have designed it so that you'll need to do a bit of soldering to attach your wires to ESP8266. There is also a reset pinhole and USB cable opening.

To complete the project you can use part of this tutorial: https://www.instructables.com/...

I have also attached my simple code for ESP8266 which reads sensor data and sends them via MQTT to server. On the server side I use Mosquitto broker and Node-RED to process and visualize data on Raspberry PI.

Loading comments...

Loading prints...

Mini Weather Box for ESP8266 & BME280

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

3 downloadable files:

View 3D
Weather_Mini_Lid.stl
STL Model
688.4 KB
File size
View 3D
Weather_Mini_Box.stl
STL Model
3.4 MB
File size
ESP8266_sample_code.txt
.TXT File
3.2 KB
File size
Free download - login required
Downloaded: 64 times
