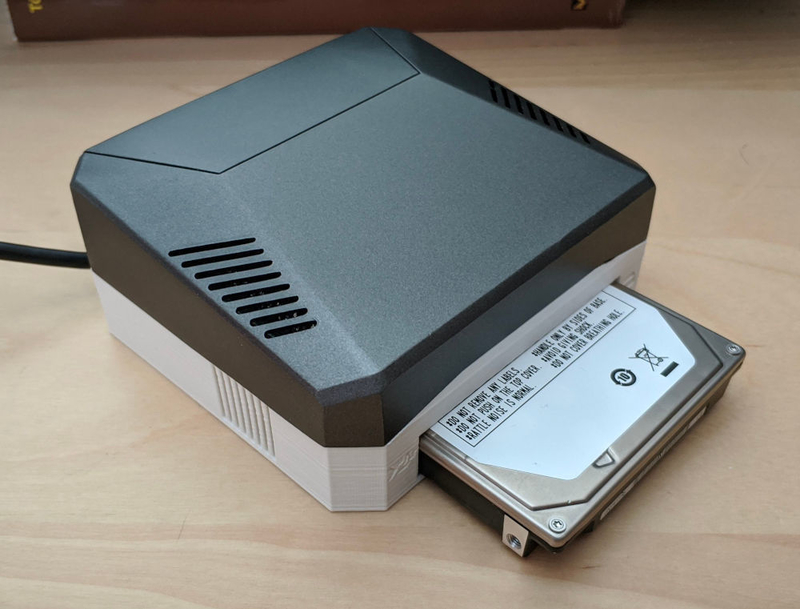

I designed an Argon One case expansion with a 2.5' HDD/SSD hot swap slot 😁
Features:
- The base is attached with the stock screws.
- HDD to USB link is achieved with a simple SATA to USB 3 cable (the board is striped from its casing).
- 3 different versions are provided:
- Model A: 12.5mm height drive (2.5' HDD)
- Model B: 9.5mm height drive (2.5' HDD/SSD)
- Model C: 7.0mm height drive (2.5' HDD/SSD)
- 2 different drive arrangements are provided:
- Model 1: slot from the front with SATA-2-USB board support
- Model 2: slot from the back
Design software: AutoCAD - Rhino/Grasshopper Test Printer: Ender 3 Print Settings: Print with supports
Loading prints...
Argon One case HDD/SSD extender
6
likes
0
collections
Tags:
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
