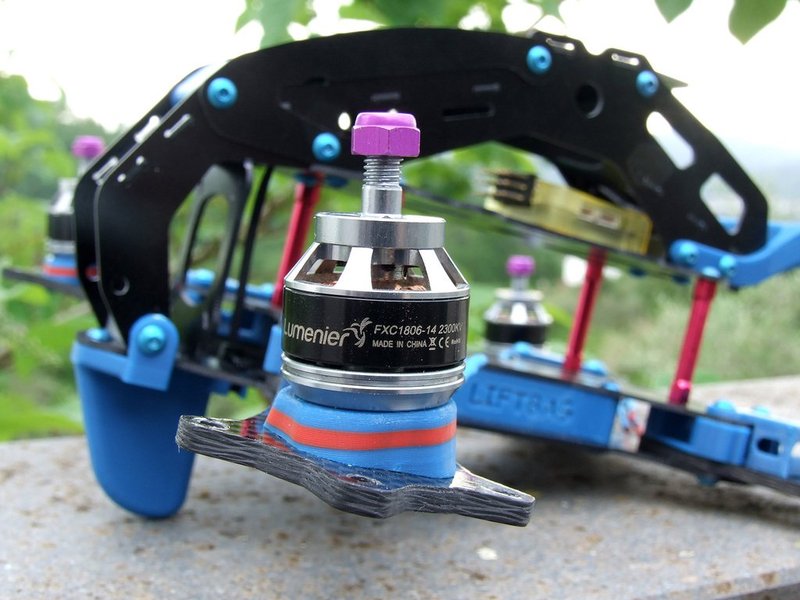

These motor mounts have a different locking system respect to the 10° tilter (http://www.thingiverse.com/thing:710052) and need to be threaded, M3 or the corresponding imperial measure, so better to use ABS. Two version, for 22xx motors with 16/19xM3 pattern and for 18xx motors with 12/16xM2 mounting holes. These motor mount can also be used with all quads which have a + shape motor mounting holes in line with the frame rather than aligned to the arm. They are not usable if the arm has only X style motor mounting holes.
Loading prints...
Atas Defiance 265 - 12 deg tilted motor mount
