Animatronic Eye 26mm
Free

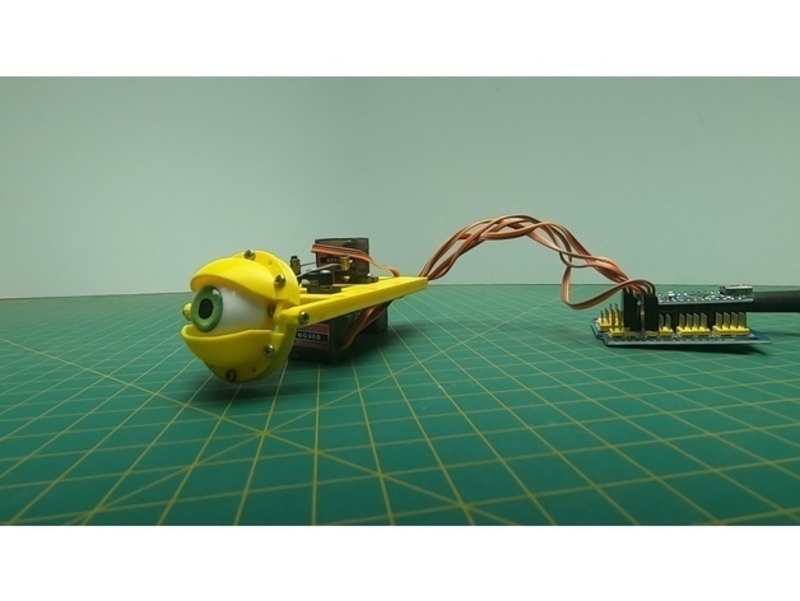

Tutorial: Assembling the 26mm animatronic eye mechanism - Version2

Animatronic eye

https://youtu.be/kuoeQ7-dlIg

List of material:

3D printed parts

1X M2 x 12mm

13X M2 x 8mm

1X M2 Nut

4X micro servos (SG90 or MG90D or MG90S)

Plastic Eye 26mm

1 ~ 1.5mm metal rod - I recommend 1.2mm

4X Plastic M2 ball joint

4X Metal Linkage D4mm x Φ1.2mm

For Arduino codes, MP3 files and much more, please support me on Patreon: http://www.patreon.com/HendrikxWorkshop

Thanks, Enjoy it!
