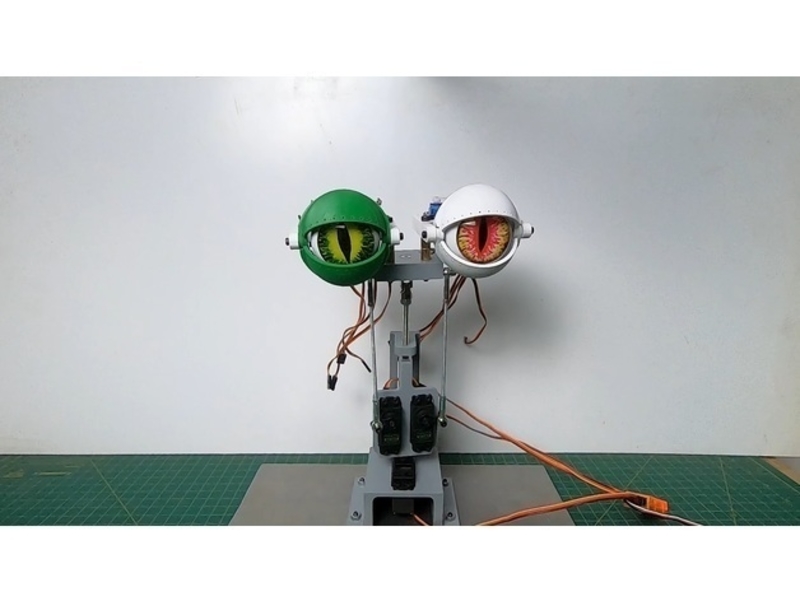

DIY – Neck mechanism for animatronics
This 3D printed neck mechanism can be controlled by an arduino or RC,
List of parts:
3X servo MG995 or similar
4X ball joint 3mm x 3mm (both sides of the brass ball is convex)
1X Cardan Joint 6mm x 5mm
1X bolt 5mm x 20mm
4X bolts 5mm x 25mm with nuts
12X bolts 3mm x 10mm with nuts
2X bolts 3mm x 12mm with nuts
4X bolts 5mm x 15mm with nuts
3X 6mm nuts 2X 3mm nuts with washers
6X 3mm nuts
1X 6mm threaded rod
1X 3mm threaded rod
For Arduino codes, MP3 files and much more, please support me on Patreon: http://www.patreon.com/HendrikxWorkshop
Thanks, Enjoy it!
