Matchbox Puzzle
Free

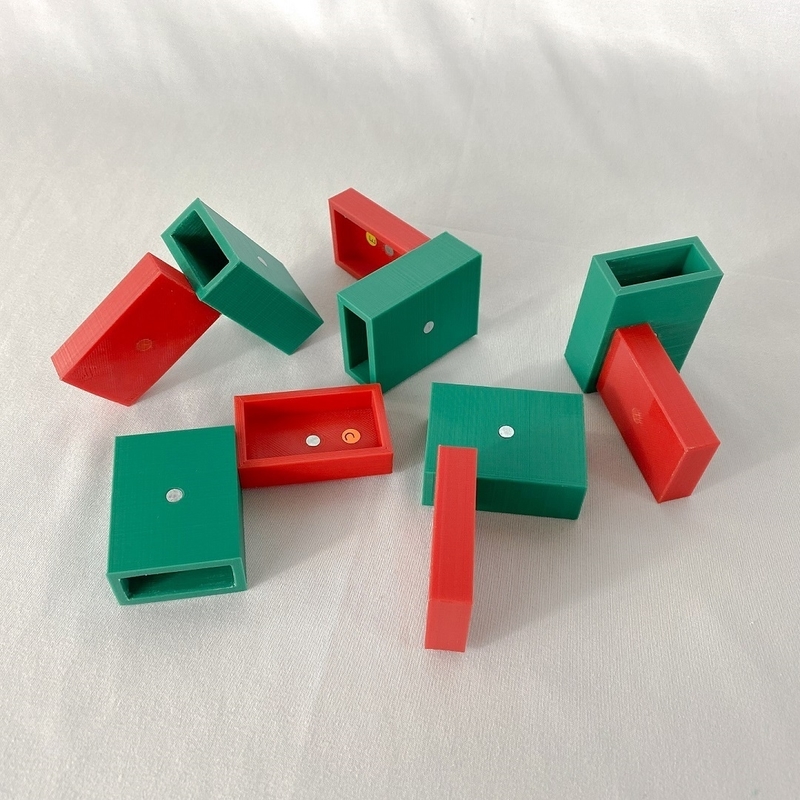

This is my take on the classic matchbox puzzle designed by Oskar Van Deventer. It consists of five boxes and five drawers. The parts are bonded together to make five assemblies. The goal is to arrange the assemblies so all boxes are filled with drawers. To add an additional step, I included magnets to the boxes and drawers. Besides giving it a nice snap feel, the magnets add an additional challenge since you must match polarity (some drawers won't slide into boxes). Lastly, the magnets hold it together during and after assembly which turned out to be a nice feature.

Build Instructions: https://www.instructables.com/Matchbox-Puzzle/ Animation: https://youtu.be/i9VpAQb1XBo Actual Build: https://youtu.be/3cU7NARGSk0

Loading comments...

Loading prints...

Matchbox Puzzle

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

17 downloadable files:
