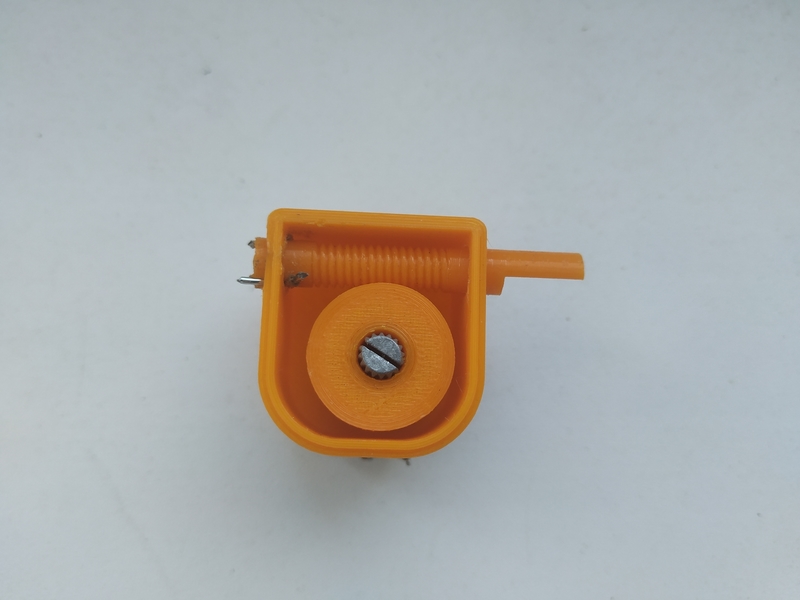

Worm gear with a ratio of 1:70 (approximately). This is more than needed, but it works well. I used this design to adjust the voltage, and it so happened that one turn equals 0.1 Volts. The worm shaft needs to be printed vertically for better quality.
Loading prints...
Multi turn potentiometer (worm gear)
