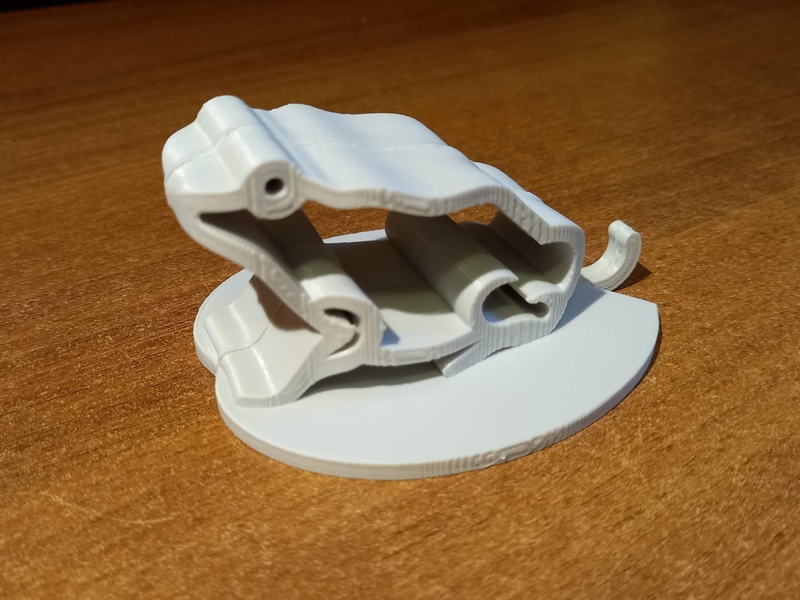

Phone Stand /Frog Theme/

The prototype is tested on Qidi Tech X-Plus printer with 0.4 mm nozzle.

Material: PLA (Qidi Technology Red);

Print Settings:

• Extruder:
  • Flow: 100%;
  • Retraction Distance: 1.5 mm;
  • Retraction Speed: 30 mm/s;
• Layer:
  • Layer Height: 0.2 mm;
  • Line Width (Inner Wall, Outer Wall, Top, Bottom): 0.35 mm;
  • Line Width (Infill): 0.42 mm;
  • Initial Layer Line Width: 130%;
  • Wall Line Count: 3;
  • Top Layers: 4;
  • Bottom Layers: 3;
  • Top/Bottom Patterns: Lines;
  • Fill Gaps Between Walls: Everywhere;
• Infill:
  • Infill Density: 60%;
  • Infill Pattern: Triangles;
  • Infill Overlap Percentage: 45%;
  • Infill Before Walls: Yes;
• Additions:
  • Z Seam Alignment: Sharpest Corner;
  • Skin Overlap Percentage: 45%;
  • Combing Mode: Within Infill;
  • Build Plate Adhesion Type: Brim;
  • Brim Width: 8 mm;
• Speed:
  • Infill Speed: 60 mm/s;
  • Wall Speed (Outer): 30 mm/s;
  • Wall Speed (Inner, Top, Bottom): 48 mm/s;
  • Initial Layer Speed: 24 mm/s;
  • Travel Speed: 100 mm/s;
  • Minimum Layer Time (Body): 7 s;
• Temperature:
  • Printing Temperature: 220 deg;
  • Build Plate Temperature: 100 deg;
• Cooling:
  • Initial Fan Speed: 0%
  • Regular Fan Speed: 100%
  • Regular Fan Speed at Height: 0.7 mm;
• Support: disabled;
