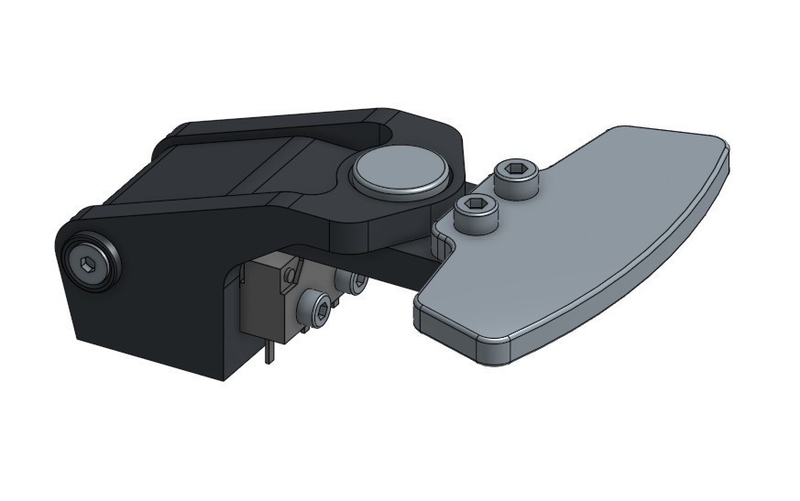

Magnetically actuated universal paddle shifters for simracing.
M3 by 10mm pitch mounting holes
Strong and snappy actuation force, choose you preferred shifting force playing with different sized magnets Really small footprint and short throw
FILES INCLUDED:
- Shifter Body
- Shifter Lever
- Formula Paddle
- GT Paddle
- Classic Paddle
WHAT'S NEEDED:
- 12x3mm or 12x5mm N45/ N52 neodymium magnets - 4pcs
- 9.5mm pitch standard microswitch OMRON D2SW Recommended - 2pcs
- M3x8mm hex head countersunk screws/ Needed to keep the hinge in place - 4pcs
- 5x20mm M3 threaded standoff to use as an hinge - 2pcs
- M3 aluminium countersunk washer/ finishing touch for the hinge screws - 4pcs
- M3x12mm hex head cap screws/ Needed to fix the paddles to the arm of the shifter - 4pcs
- M3 nylock nut/ To use with M3x12mm cap screws for the paddles - 4pcs
- M2 screws and nuts to fix the microswitch in place - 4pcs each
- M3 screws, nuts and washers selection of your choice to mount the shifter to your steering wheel or button box -4pcs each
- Wire, solder and connectors for the microswitch according to your needs.
PRINTER SETTINGS:
- PLA or PETG
- 0,4 Nozzle
- 0,1mm or 0,2mm layer
- 80 to 100% infill
No finish needed. Wet sand with 320 grit sandpaper, prime and paint if desired You can print the paddles or have them made in 3 or 4mm thick carbon fiber. Carbon Fiber Cutting Service Ask for .DXF files if needed
