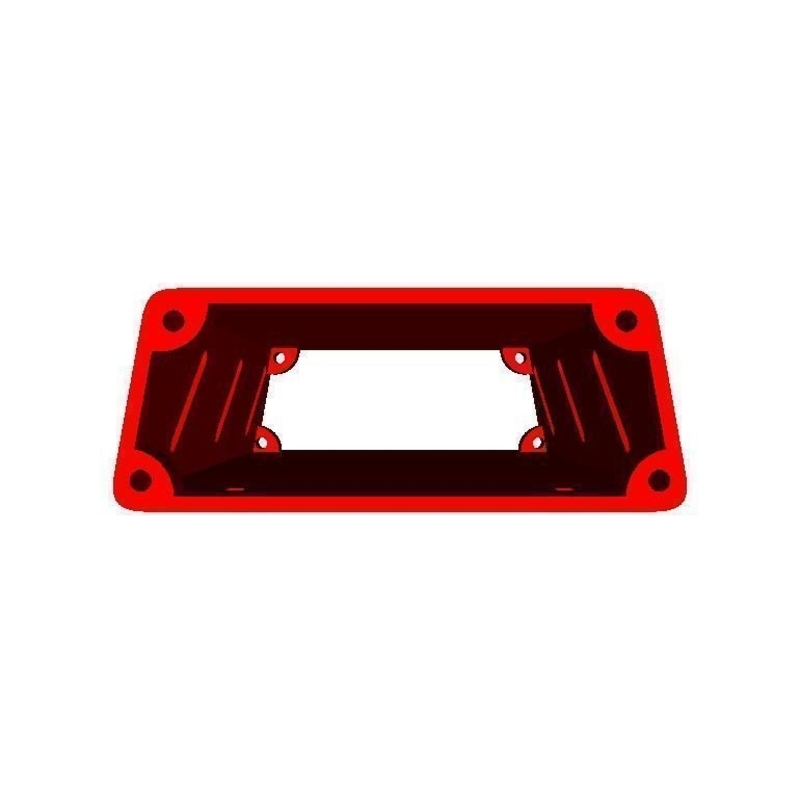

Enclosure for ATU100 Antenna tuner
Package includes following:
- Enclosure
- 4 front plates
- 3 back plates
Front plates made for the following Automatic mode with no buttons, after hex modification Automatic mode with no buttons, and logo One button setup Default 3 button setup
Back plates with DC jack for SO-239 BNC BNC Square
All holes adjusted for bras inserts or thermoplastic screws. Side openings on main box for air circulation.
Skirt of 8mm recomended for main enclosure because of smaller contact area. No support (Depending on your material and printer setup that needs to be dialed in) main box printed upright wiht PETG, with no support for screw hole just bridging for them Overhang 45
