Design Background:
I needed a USB hub for 10 USB drives, 5 SD cards and about 10 Micro SD cards. I searched for one that fit my needs but couldn't find a perfect one. The designs online either had excess number of slots or had a shortage of them.

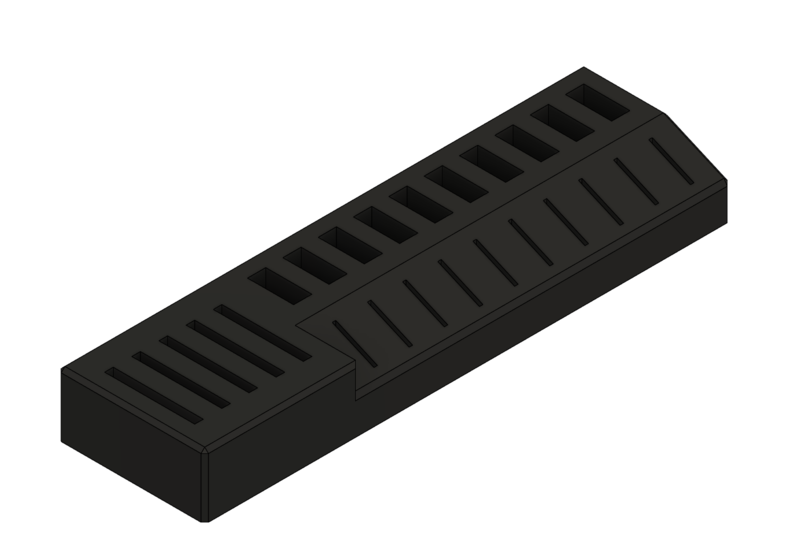

Therefore I have designed a parametric hub where you can decide the number of USB, SD or Micro SD slots you require and design is optimized accordingly.
YOU JUST NEED TO CHANGE 4 PARAMETERS AND YOU ARE DONE!!
Note: You can also mess around with a lot of other parameters if you like, but manipulating the 4 parameters mentioned above is sufficient to generate a customized design.
DOWNLOAD LINK - MediaFire Download Link
Design Description:
Please watch both the videos completely to learn how to modify the design as per your liking.
Case 1 - When you want lesser number of slots than what is already provided in the f3d file
Case 2 - When you want more number of slots than what is already provided in the f3d file
PS - Use double sided adhesive tape to stick the hub to your working station.
Please do leave a comment, I would love to hear from you.
Gracias,
Nihal
