Wltoys 104001 Top Deck / Brace
Free
Wltoys 104001 Top Deck / Brace - Thumbnail 1 Wltoys 104001 Top Deck / Brace - Thumbnail 2 Wltoys 104001 Top Deck / Brace - Thumbnail 3 Wltoys 104001 Top Deck / Brace - Thumbnail 4 Wltoys 104001 Top Deck / Brace - Thumbnail 5

Fix Wltoys 104001 chassis flex with this two top braces.

For the 3mm version you will need 8 M3x12 and the 5mm 8 M3x14.

The top front brace was two versions, with built in standoffs and without (will need to print 2 standoffs and brace).

Another option is to use the "cut" version, which removes one portion in the center, or the "full" version, which uses more plastic.

Material : PETG / PLA +

Infill : 100% or 50%

Supports : NO

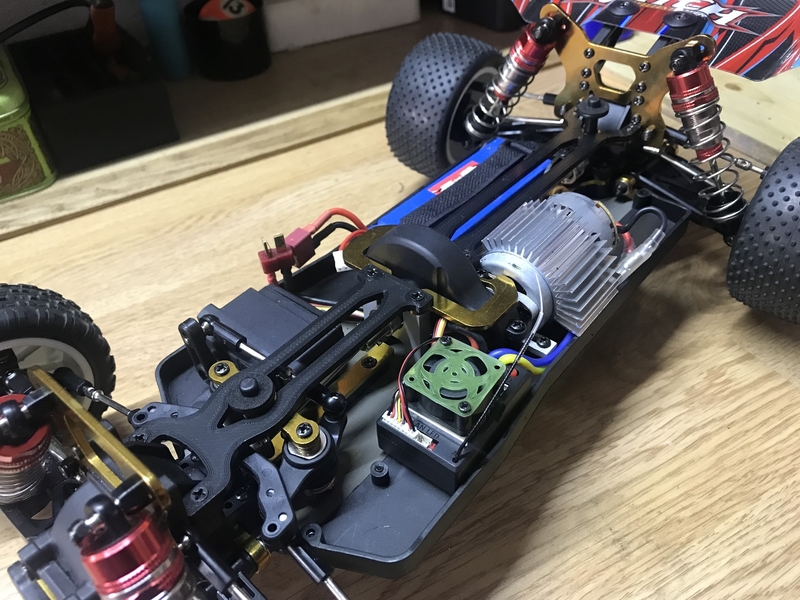

The version used in the images: 3mm, cut and front with built in standoffs.
