Nut M6 :
Thickness 5.2mm, Hexagon 10mm
Diameter ring 12 mm
Thickness ring 0.5
STUD BOLT of spoiler
Thickness 18 mm
Length of thread 13 mm
Head dimension 10x10x2 mm
CLIP SPOILER
Clamp part gap 4.2 mm
Hole of plate D9-9.5 mm
Length clip direction to hole 11 mm
Loading prints...

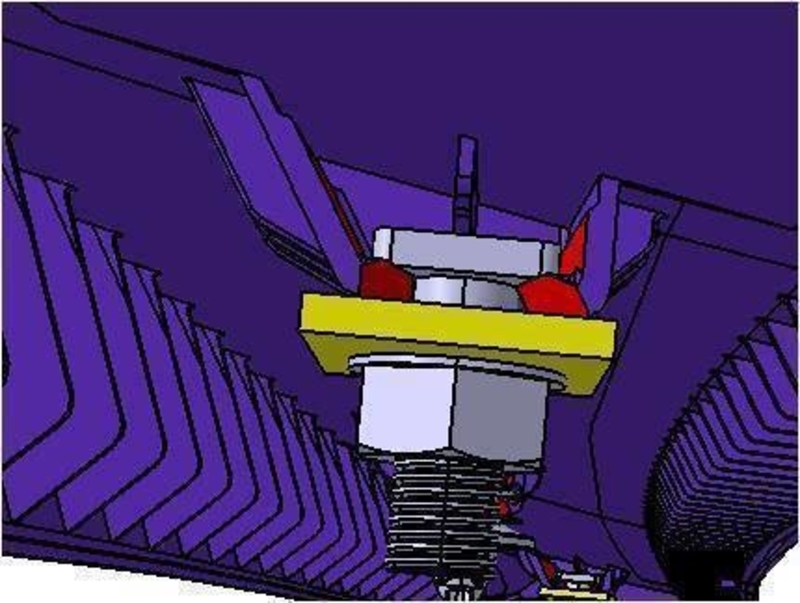

STUD BOLT and NUT M6 and clip
