#Newone

Documentation, parts list, programs, newest versions at https://open-ats.eu/

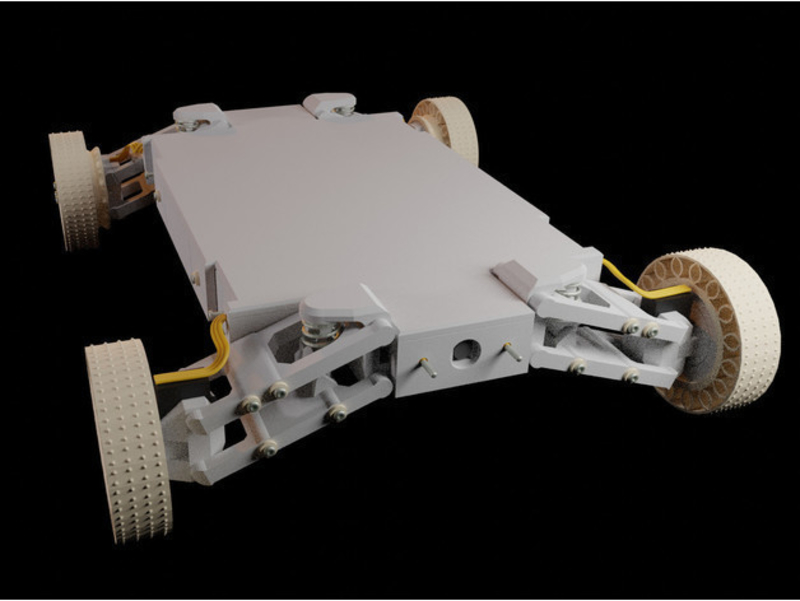

open-source, 3D-printed, low-cost transport vehicle controlled over cellular network and programed in Python

## features: #### 3d printing - open-source hardware, hole car 3D-printable   - 3D-printed ball bearing (printable in one piece without any support)   - 3D-printed flexible tires (airless, filaflex 82A) - support structures are rarely required - insertable metal springs on all axis - assembly with only M3-screws and threaded brass inserts

#### programs - programs for controlling the car over the internet   - program for controlling motors (PWM)   - program for videostreaming - open-source software, all programs written in python (not secure but easy to understand) - programs using udp for low latency - opencv for taking video and displaying them, good for future AI

#### electronics - two individual servomotors to steer the front wheels - two individual brushless motors directly integrated into the rear wheels - raspberry pi - blheli32 ESC's - 18650 cells with BMS (25.2V)
