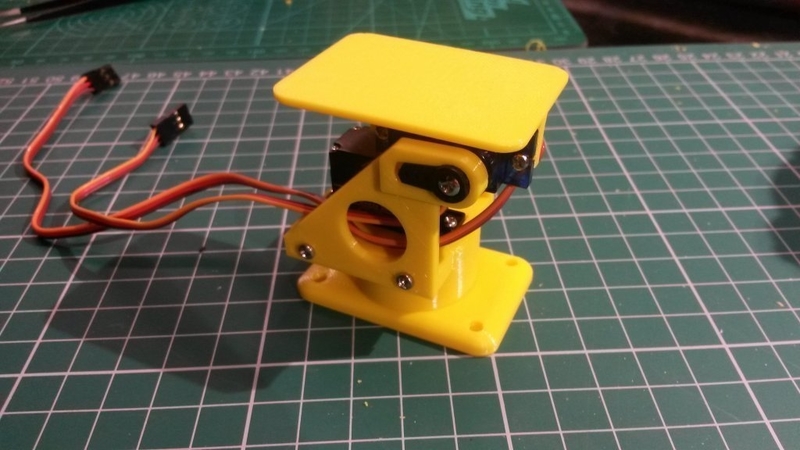

Strong & light Pan & Tilt platform for Mobius/RunCam, inspired by similar cheap online versions. Tilts from level though to 90deg forwards. Base fits the Bix3 FPV canopy perfectly. 50grams AUW with servos.
The upper pivot hole needed cleaning out with a 5mm drillbit on my print, otherwise everything went together with no trimming.
Redesigned with a socket turntable to be more sturdy around Panning, taking the lateral forces away from the pan servo and eliminating wobble.
Specially designed for Pan to fit the Turnigy™ TGY-R5180MG 180 Degree MG Analog Servo.
For Tilt, use a Turnigy™ TGY-50090M Analog 9g Servo
Requires 4 - 2.5x6 screws for fitting side plates
6 - 2x6 screws for mounting servos
TinkerCAD source: https://www.tinkercad.com/things/hdnFXSf5Z0x
