List of parts-
2x - Servo MG90D - s.click.aliexpress.com/e/_9Aj5xd 1x - Servo MG996R - s.click.aliexpress.com/e/_9xSPmB 6x - Linkage Stoppers M2 x 1.8 mm - s.click.aliexpress.com/e/_Ae2TFZ 4x - ball joint M2 x 1.8mm - s.click.aliexpress.com/e/_A9oAZd 1x - cardan joint 4x4mm - s.click.aliexpress.com/e/_ABubPD 1x - linear bearing LM8UU - s.click.aliexpress.com/e/_A4AHEr Metal rod 1.5mm (cut 5 pieces of 60mm) Metal shaft 8mm (cut 1 piece of 85mm) 2x - Bolt M3x12mm 4x - Bolt 2.2x10mm 2x - Bolt M4x10mm 1x - Bolt M4 x 30mm with nut 4x - Bolt M2x10mm 4x - Bolt 2.8x10mm
3d Printer: Ender 3 pro = s.click.aliexpress.com/e/_Agmu2k
For Arduino codes, MP3 files and much more, please support me on Patreon: http://www.patreon.com/Hendrik...
Thanks, Enjoy it!
Loading prints...

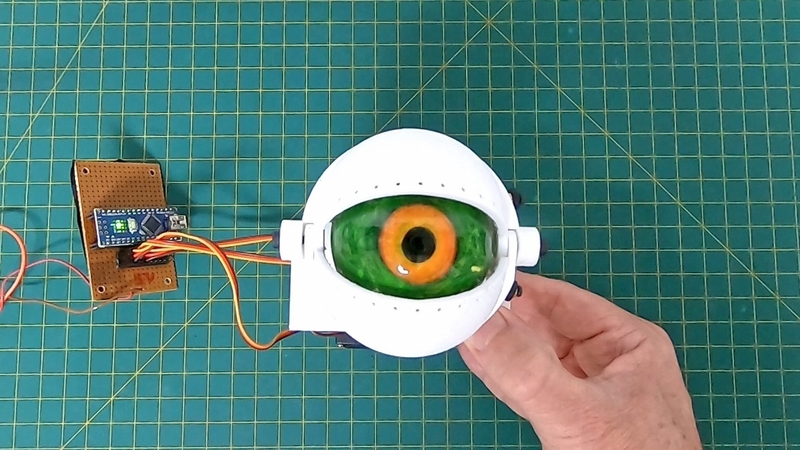

51mm 3D printed animatronic eye mechanism
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
