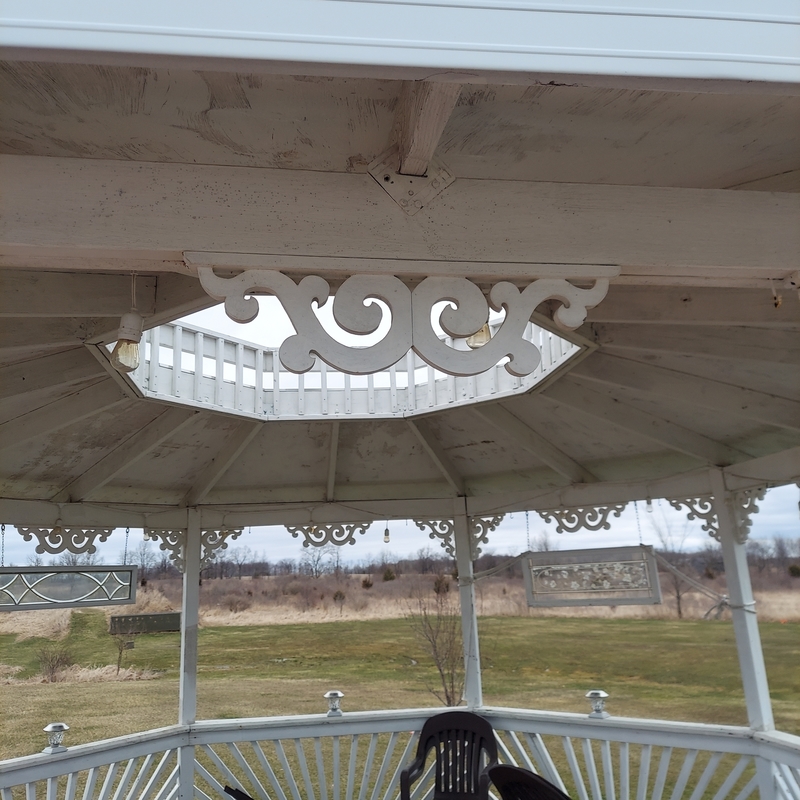

Center Corbal for gazebo or porch. The length of this part is 12-1/4" as shown in the photo. For a complete Corbal assembly two of these parts will be needed and mounted on a pine substrate back to back. Use 1-1/2" exterior wood screws to attach the printed parts to the wood substrate. The assembled Corbal photo shows the broken half in wood sitting in front of the repaired Corbal assembly. One half is PETG and the other half is the original wood section. A double ended wood stud is used to hold the two parts in position at the center where they meet. They must be screwed together before mounting to the wood substrate.

Printer used is a Creality 10S PRO V2.

Material is OVERATURE PETG in white.

Build base is a glass substrate with a Textured PEI covering.

Material Temperature- 240 Nozzle, 70 Build Base.

Quality is - .16 mm line width

Retract distance - 5-6 mm

Retract speed- 45 mm/sec

No support

Adhesion- Skirt
