NOTE This is a Work-in-Progress Page.
DO NOT PRINT THE STL*s yet!
The Complete Project will be totally Open Soure with BOM,Firmware,Config and so on. Just a little bit of patience. Some of you guys did already ask if we are going to Sell this Printer as a ready to go finish kit or even a fully assembled Unit.
Yeah, there will be Pre-assembled Kits in the Future. If you want one, make sure to check our Website for the latest News. www.ingenium-3d.xyz or check us out at Insta: @ingenium3dgermany
SPECS Printing Area 300mm x 400mm x Infinity
X & Y Nema 17 Closed Loop Position System
24v Phaetus Dragonfly Allmetal Hot-End up to 500degree Celsius with Special Airbush Point Nozzle
Dual-Gear Extruder Capricorn PTFE Tube for Filament Guiding decentralized Berd-Air system for Part cooling Heated Bed up to 90gedree Celsius
Glass-Fiber Woven GT2 Timing Belt Meanwell 24V/350W Power supply
Composite Material Printing Conveyor Belt - Look at our Shop - We are using our own developt Mesh-textured Belt.
BigTreeTech Octopus V1.1 32Bit Mainboard BigTreeTech Mini 12864 Display TMC2209 Stepper Driver Filament Runout Sensor Webcam with 5MP and a 1080P resolution
MGN Linear rails for X and Y in a Stable and very sturdy XY core Configuration
Firmware Klipper with mainsail as GUI on a Rasphberry PI
Loading prints...

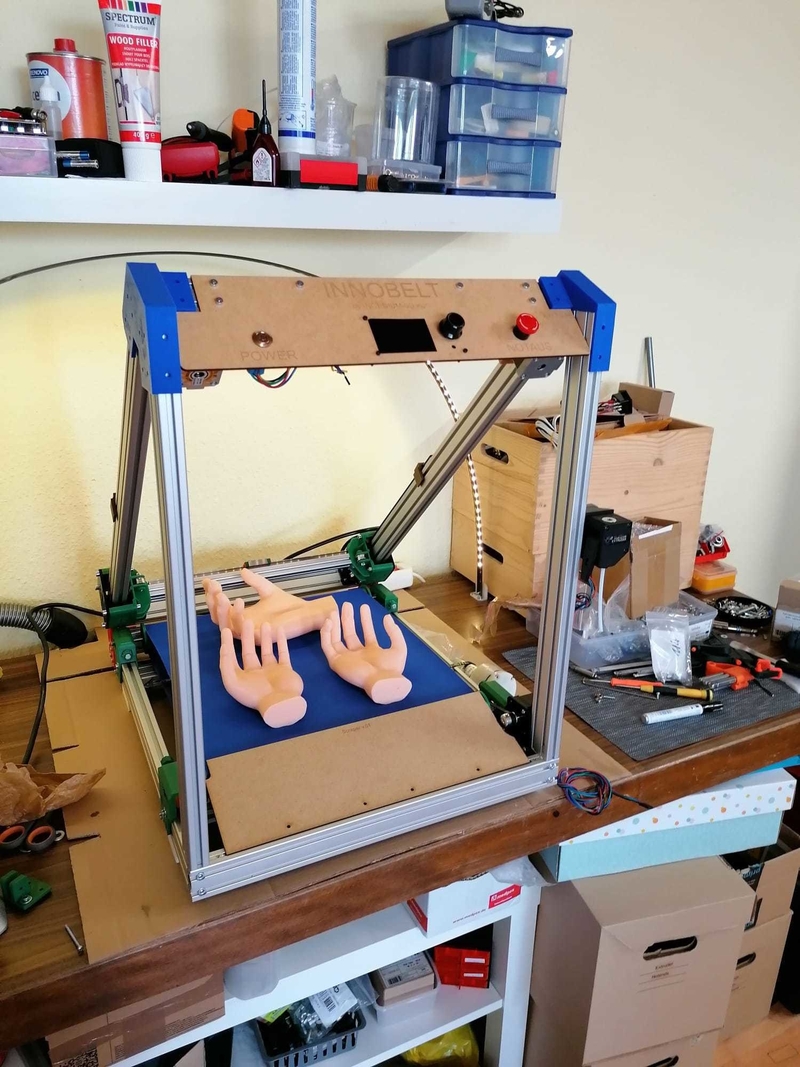

INNOBELT - Affordable Conveyor Belt 3D Printer - Open Source
