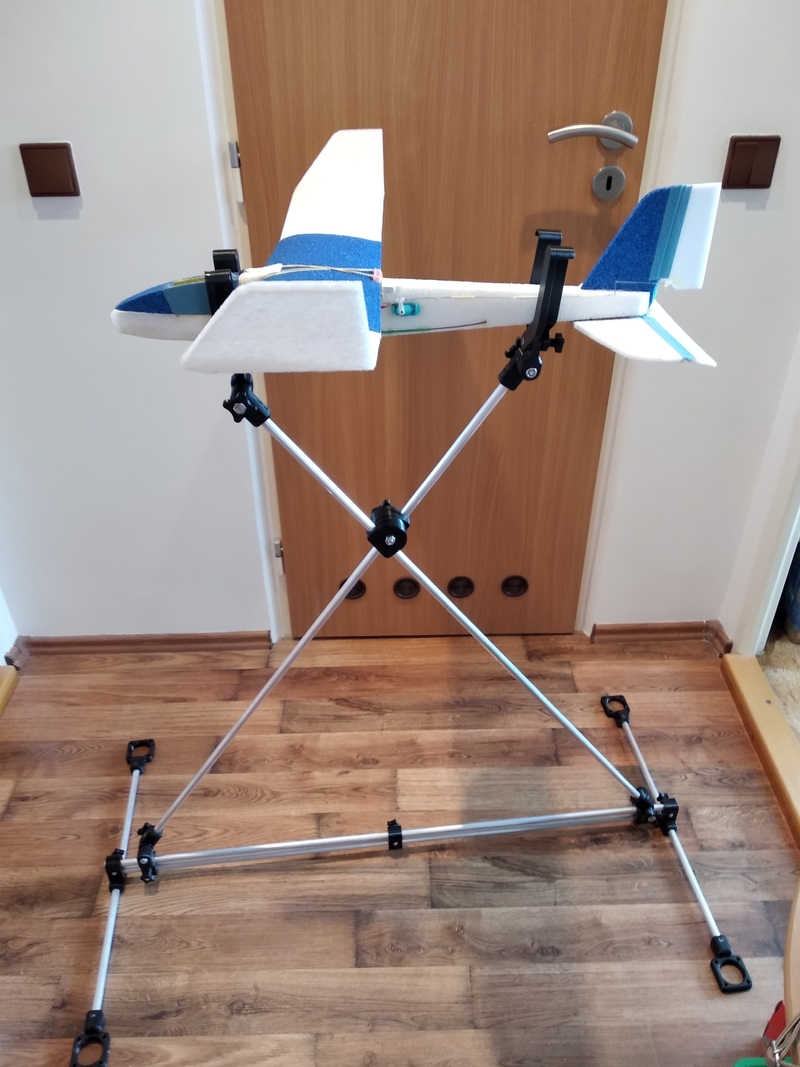

Stand for RC aircraft models weighing up to 1000g.
The basis is 5 pcs of aluminum tubes for
model up to tube size
600 g 12x1.0 mm
800 g 12x1.5 mm
1000 g 12x2.0 mm
POZ. NAME KS.
22 NUT M8 DIN 934 8-ZN 5x
21 NUT M5 DIN 934 8-ZN 7x
20 SCREW M8x55 DIN 933 8.8-ZN 4x
19 SCREW M8x65 DIN 933 8.8-ZN 1x
18 SCREW M5x40 DIN 933 8.8-ZN 7x
17 TUBE TR 12x2 1000 Alu 2x
16 TUBE TR 12x2 850 Alu 2x
15 TUBE TR 12x2 500 Alu 2x
14 RCST Head M5 7x
13 RCST Head M8 5x
12 RCST1A 2x
11 RCST1B 2x
10 RCST2 4x
09 RCST3 3x
08 RCST3B 1x
07 RCST4A 2x
06 RCST4B 3x
05 RCST4BX 1x
04 RCST4c 4x
03 RCST5 2x
02 RCST6 2x
01 RCST6X 2x
Loading prints...
RC Plane Foldable Stand
Creative Commons Attribution-NonCommercial-NoDerivatives
You can download and share as long as you credit the creator, but you cannot change the material or use it for commercial purposes.
Licensed under CC BY-NC-ND
Files Included
15 downloadable files:
