Designed and tested in Australia's offroads.
-- Would fit most new and old MTB's Dual suspension or Hard-tails -- Fits 26'' to 29'' Wheels --
0.3 tolerance built in. Should print well on most printers.

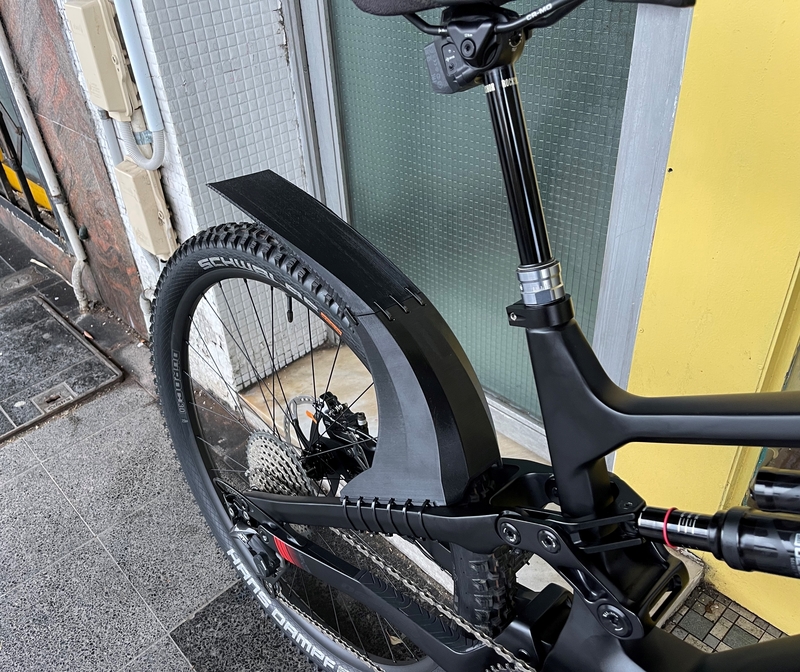

Heavy duty rear mudguard designed to survive the harshest conditions.
Two strong pieces that connect through a heavy duty sliding joint.
No Glue needed!
Print and connect with; Standard 17 Zip Ties, Sizes; 4.6mm to 5mm width would fit perfect. 5 Zippies connect the two parts together and 12 more connect the Mudguard to the frame.
Happy Days :)
I printed this with Prusament PETG, If you can print with something stronger without warping than do that, the stronger (ASA etc...) the better, even though PETG works fine. Please have a look at the pictures to see how I placed the parts on the build plate, of course every printer is different so bare that in mind. Min Build plate size; 210/250/210(Prusa mk3s size) Recommended; 100% infill, Brim 15mm Min for Bottom part. 0.4 or 0.6mm Nozzle, 0.15 or .20 Layer Height, 4-6 Perimeters.
Happy printing!
Loading prints...
MTB Rear Mudguard The only one you will ever need!!!
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
