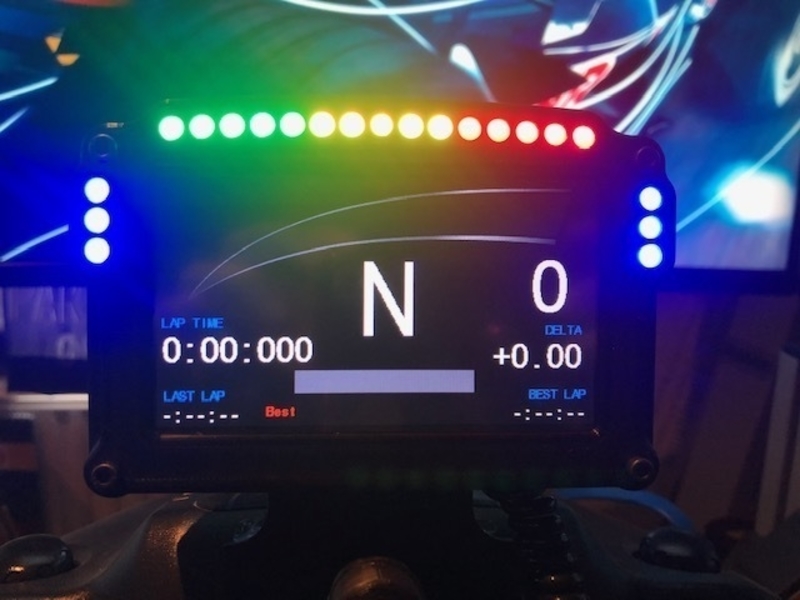

New 4.3" simracing dashboard with a 4.3" Nextion display and 21 fully configurable RGB leds. Fully working on a sim with Simhub software. Very easy to assemble and setup. Please contact me if you need more information about the project.
Parts needed:
21x RGB led PL9823 5mm (fully configurable) https://nl.aliexpress.com/item...
1x Arduino Pro Micro, mini USB (only for the Leds, 5V, GND and 1 digital signal pin (DIN) needed) https://nl.aliexpress.com/item...
1x Nextion 4.3" display, model: NX4827T043_011R
1x Serial to USB adapter FT232RL (to connect the Nextion dash with USB) https://nl.aliexpress.com/item...
1x USB hub (to connect Arduino, FTT and PC power spiral cable, to have only 1 output cable to PC) https://nl.aliexpress.com/item...
2x USB mini cable (left angled) https://nl.aliexpress.com/item...
1x USB spiral cable (PC power) https://nl.aliexpress.com/item...
8x M3 nut https://nl.aliexpress.com/item...
4x M3x30mm Hexagon countersunk https://nl.aliexpress.com/item...
Loading prints...
DIY Dash with 4.3" display & RGB leds
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
