Applied four bar mechanism theory for reclining. 2 positions were considered, one for phone stand and two for gadgets that needs to be laid flat.
Note: This is designed for Choetech wireless charger. If you have different brand of charger. Just tweak the Charger_Mount.stl for your suiting.
Layer height: 0.2mm Infill: 20 to 50% will do Perimeter wall: 3 to 4
Reorient the things for best printing. For BaseLock.stl & Charger_Mount.stl it is tilted in 75deg and most are just 90 deg. Only the BaseLock.stl will need some support.
Loading prints...

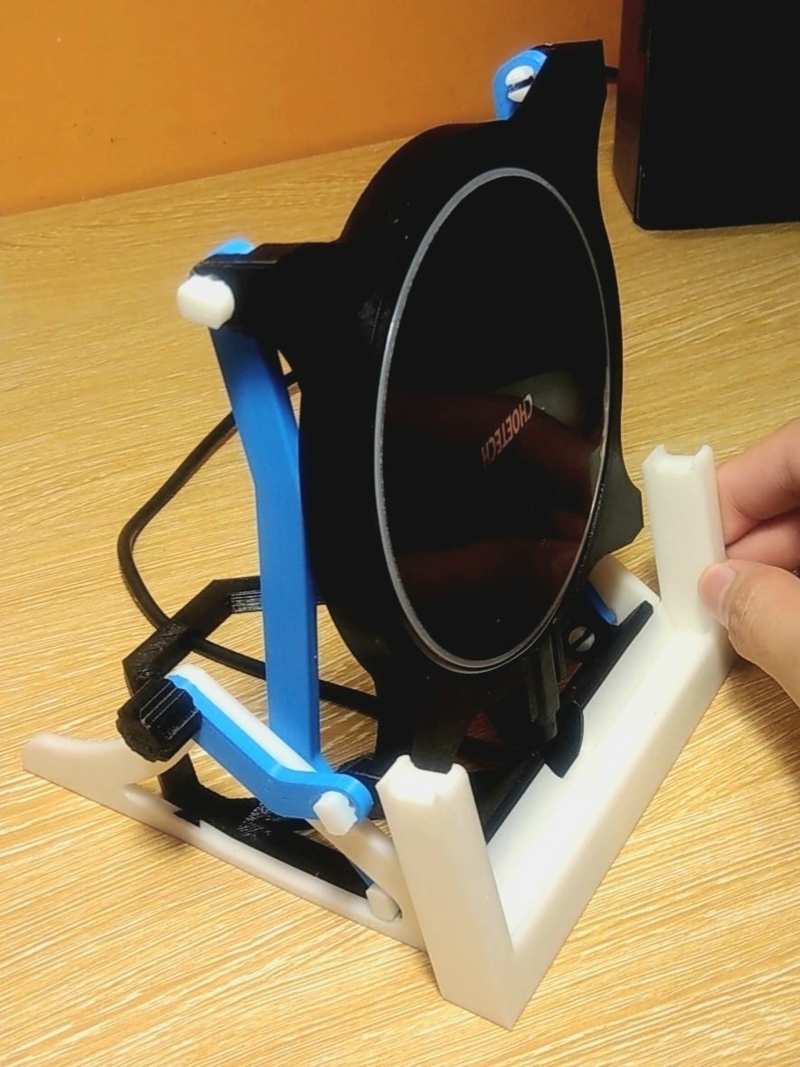

Reclining Wireless Charger Mount v1
