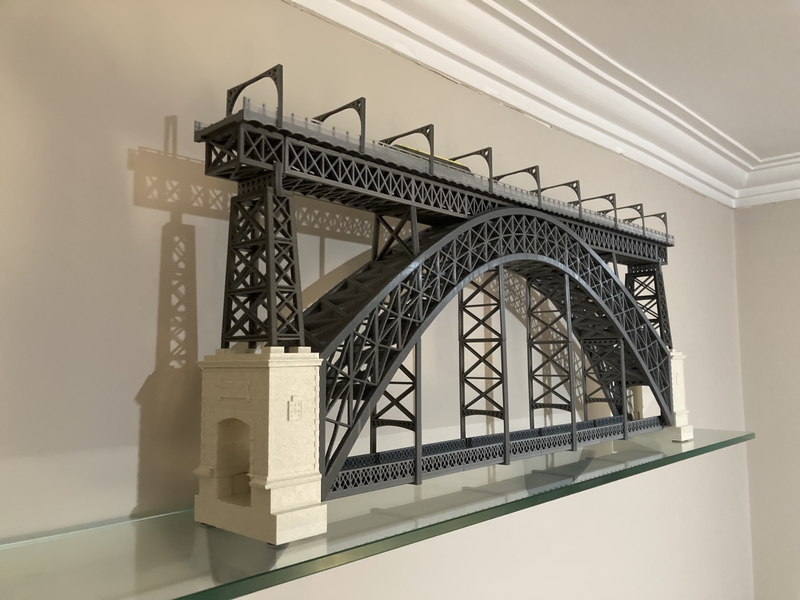

Emblemática Ponte sobre o Rio Douro, unindo as margens entre o Porto e Vila Nova de Gaia, em Portugal. Ponte projetada por Théophile Seyrig e contruída entre 1881 e 1886.

Emblematic Bridge over the River Douro, joining the banks between Porto and Vila Nova de Gaia, in Portugal. Bridge designed by Théophile Seyrig and built between 1881 and 1886.

PILAR: 0.08mm, PLA Spectrum Stone Age, 210ºC/60ºC printed in 3 parts without supports, 5% infill and 0.3mm external perim.

Tabuleiro Inferior: 0.08mm, PLA 3DFilamentos Silver GREY, 198ºC/60ºC printed in 5 or 10 parts, supports on 1st and 5th part or 1st and 10th, 5% infill and 0.4mm external perim. This was separated in 5 parts if wanted to print 5, otherwise it is possible to print 10 separated parts. Do not print 5parts + 10parts, choose one of them.

Torre de pilares: 0.08mm, PLA 3DFilamentos Silver GREY, 198ºC/60ºC printed stand up, with supports on bigger bridges and bigger crosses, 5% infill and 0.4mm external perim.

Corr Tecnico Tabuleiro superior: 0.08mm, PLA 3DFilamentos Silver GREY, 198ºC/60ºC printed with supports on all bridges and crosses. Sugest to study the print position first. 5% infill and 0.4mm external perim. This has to be printed twice same file in order to have 2 + 2 equal parts. I've printed as it is on file.

Suporte Torre Pilar: 0.08mm, PLA TUCAB Silver GREY, 205ºC/60ºC printed as it is, twice. 5% infill and 0.4mm external perim.

Torres Internas: 0.08mm, PLA TUCAB Silver GREY, 205ºC/60ºC printed as it is, twice. 5% infill and 0.4mm external perim.

Tabuleiro Superior: 0.08mm, PLA TUCAB Silver GREY, 205ºC/60ºC printed at 5% infill and 0.3mm external perim.

It is recommended to lift Z at 0.2mm to avoid nozzle to crush the piece.

Some handwork may be needed in some connections (sand and glue, drill), depending of printer settings.

Dimensions (aprox): 800mm x 355mm x 110mm
