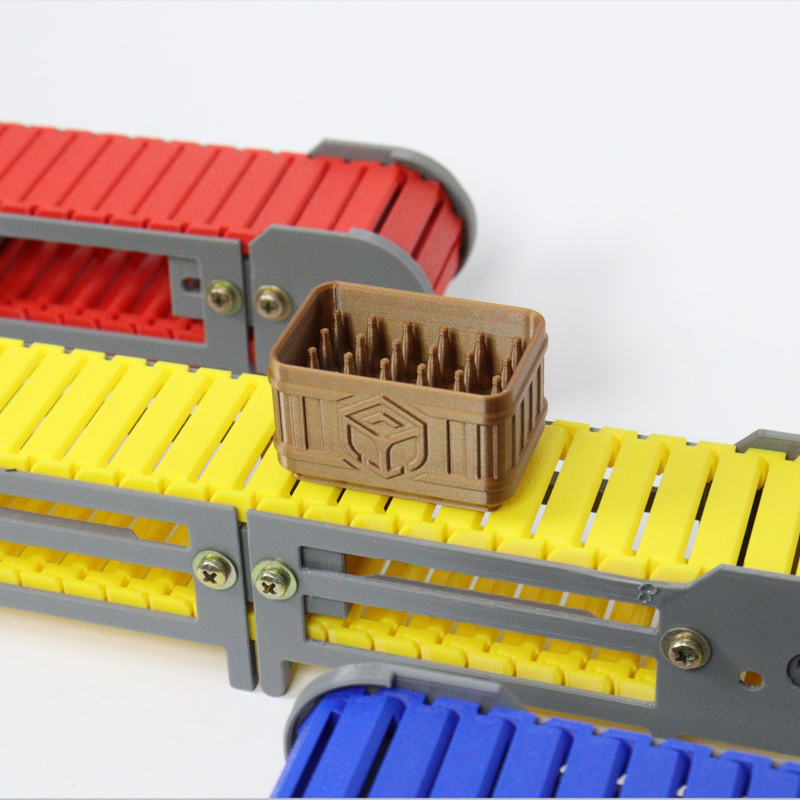

These are the Conveyor Belts from the SimuFab (Factory Simulation) collection, another 3DTROOP model that you can print on your standard 3D printer.
In order to be accessible, this collection is developed with off the shelf and low cost components, you can find easily on your favorite marketplace or electronic store.
They have a flexible and modular physical structure, allowing different configurations as well as the expansion of each element.
In addition, you can couple servo motors to create deviations simulating a real factory in your home to learn and train.
Comes with an assembly instructions manual.
You can use Arduino or a PLC of your choice to control it.
Features:
Minimum Module Legnth: 16 cm; Increment size: 8cm Usable width: 32mm; Motor drive 3~6Vdc with relay activation, allowing reversal; Reflective infrared optical sensors, with sensitivity adjustment; Sensors easily positioned as needed without the use of tools; Customized products for simulation: Tire and Beer Box; Micro servo motor actuator arm for product selection and belt change; Comercial bill of material:
-Actuators:
3~6Vdc Geared Motor with metallic gears for greater durability, Relay activation: https://pt.aliexpress.com/item/4000377305275.html?spm=a2g0o.order_list.0.0.b0a4caa4ffEWj1&gatewayAdapt=glo2bra
-Sensors:
Optical Infrared Reflective Sensor 5Vdc: https://pt.aliexpress.com/item/32832150144.html?spm=a2g0o.order_list.0.0.b0a4caa4ffEWj1&gatewayAdapt=glo2bra
-Boards:
You will also need M3x16 screws with washer and nut to secure the frame parts and M3.5x12 screws for plastic to secure the motors
No support required.
Please feel free to share the images of your print, that would be great!
Don't forget to hit like and follow us! Every week we will be posting new models for you!
3D PRINTING SETTINGSDimensions(mm): 160 x 42 x 45 mm Layer heigh: 0,2mm Walls: 2 Infill: 10% Material: PLA No support required. Printing time: ~7,5h
