Filament Spool Holder
Free

I bought and case from esun, it works quite well and protects the filament from dust and moisture, but it does not fit filaments bigger than what they design and sell.

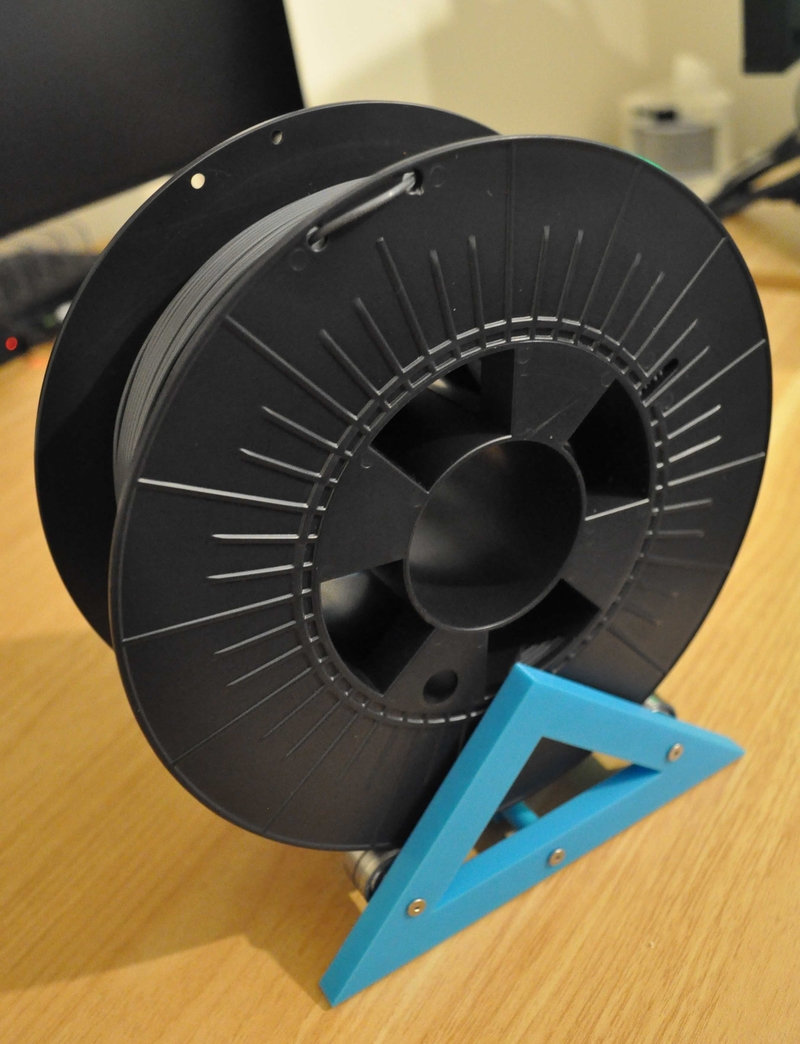

I bought a filament from Prima with dimensions: 75mm x 200m diameter and it does not fit inside. That's why I designed and printed one that fits those spools. It is compatible with spools of any diameter and width of up to 78mm.

It is very easy to print, no supports needed. It consists on

  • 3 crossbars
  • 2 triangles.

Apart from printing the plastic parts, you will need:

  • 6 x M3 screws up to 17mm (no need to be that long!)
  • 8 x Bearings 608ZZ.
  • (Optional) Silicone feet 7.5mm

Any PLA or ABS is ok.

Loading comments...

Loading prints...

Filament Spool Holder

likes
0 collections
Creative Commons Attribution-NoDerivatives

You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.

CC BY-ND Licensed under CC BY-ND
Files Included

2 downloadable files:

03_-_Crossbar.stl
STL Model
~1-5 MB
Est. size
02_-_Triangle_support.stl
STL Model
~1-5 MB
Est. size
