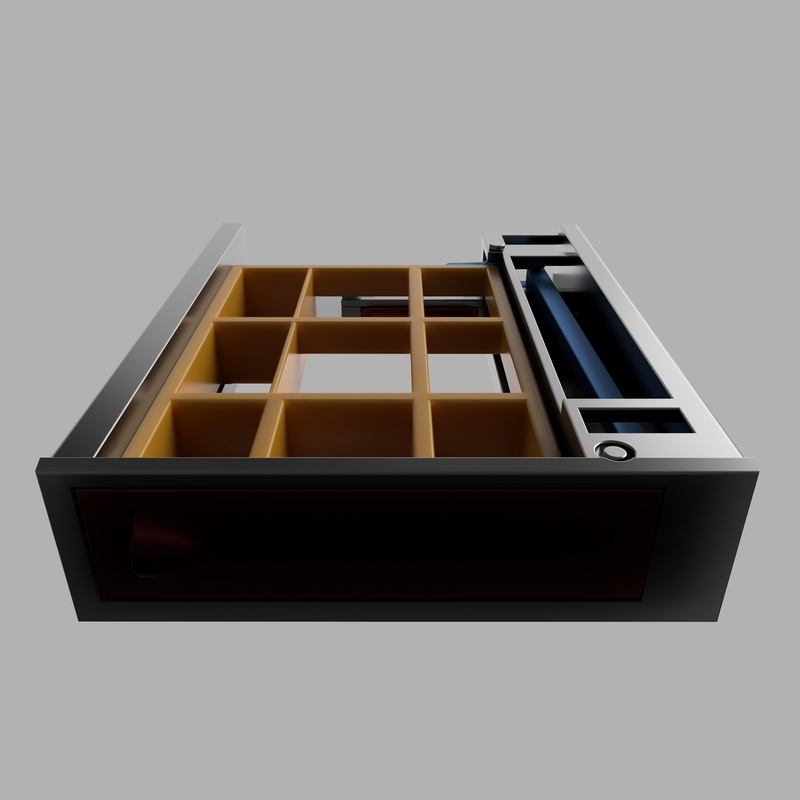

This is design of hot swap for full size 3.5 inch with 2.5 inch tray HDD for internal pc cd-rom slot (FOR STANDARD CD-ROM PLACE).

Fits my pc case - may be different with other cases but should be similar i think. There are three packages STL, 3MF, and photo files . 3D packages have 14 files without photos. The photos show how it is supposed to be put together and what it can do. Besides, there is a video on YOUTUBE where I show how to assemble the case and how not to assemble it (I think I made all the mistakes I wanted to avoid, but it was my first video on YOUTUBE :) ).

I received sata cable connectors bent in all directions (in a place covered with hard rubber - shown in photo - inaccurate cast), so I decided to design and replace it.

If you have questions, leave a comment.

FIRST TWO WAS PRINTED WITHOUT KLIPPER ON E5 PRO with merli 2.0.6 AND THEY ARE SITTING IN MY PC :)

Printing time (all parts) was about 20-24 hours (That was tests-I can't say exactly)

All Files are exported in position that they were printed, the choice of adhesive layer is yours ).

There is need to have 7 skrews 3.5x9.5~9mm shown in the video.

Ender 5 Pro on klipper  (to get better quality I switched to KLIPPER, that is one that was assembling on video) speed - 80mm/s nozzle 0.4mm Pressure advance - setup on klipper (each printer is different need to be tested) acceleration - stock (500mm/s2)

SATA CONNECTOR PIN 2x.stl must be printed twice !!!

Files printed with 100% infill: CONNECTOR PLATE.stl FRONT CASE.stl FRONT FLAP PIN.stl FRONT FLAP.stl FRONT FLAP-PUSHER PIN.stl LONG PUSHER.stl PUSHERS CONNECTION PIN.stl SATA CONNECTOR BOTTOM.stl SATA CONNECTOR PIN 2x.stl         -        PRINT TWICE!!! SATA CONNECTOR TOP.stl SHORT PUSHER PIN.stl SHORT PUSHER.stl

Files printed with 15% infill: CASE.stl tray 2,5 inch.stl

SUPPORTS: CASE.stl tray 2,5 inch.stl FRONT FLAP.stl That was printed with supports or better to say they had supports in selected places.
