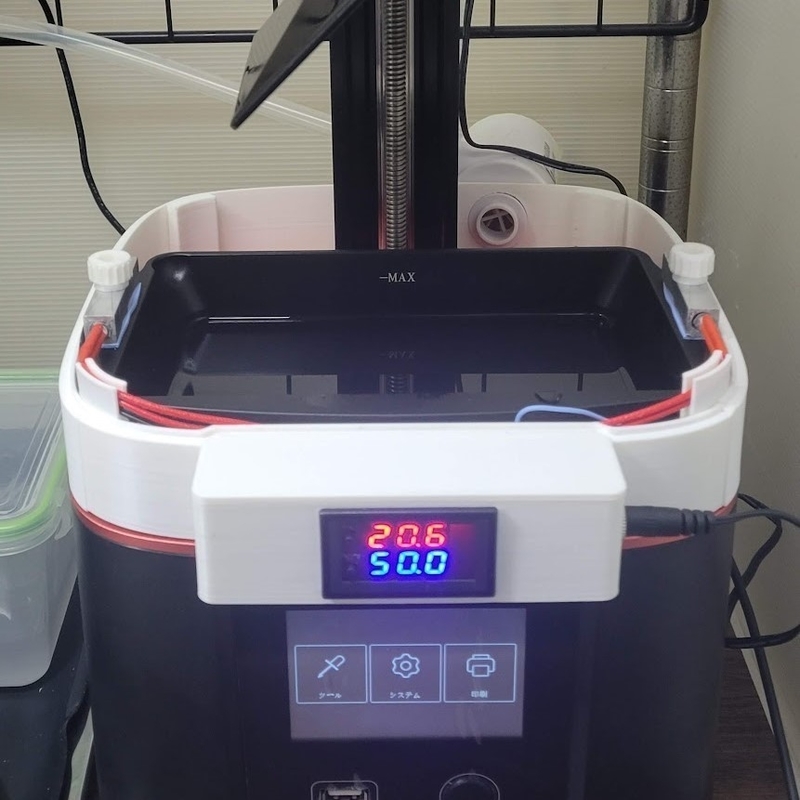

#Overview: This is a resin VAT heater add-on designed for use with the Infinity Extender for ELEGOO Mars3. By maintaining the temperature of the resin, this product can improve printing quality and work efficiency.※Parts and tools are required for completion

#Features: -Easy to use: Can heat resin without warming up the bottle -Temperature control: Heats the resin VAT to the specified temperature, ensuring proper viscosity of the resin and improving printing quality stability. -Uniform temperature distribution: By heating the resin VAT, it minimizes the temperature difference between the build plate and resin. This allows printing to continue at a consistent temperature without the resin cooling during printing. -Efficient heat conduction: The Resin VAT Heater is attached to a metal resin VAT, allowing heat to be conducted directly. This achieves more efficient heat transfer than heaters that heat the air.

#Parts list -Ceramic Cartridge Heater 12V 40W Diameter 6mm*Length 20mm -Termostat digital temperature controller 12V -Aluminum prismatic 10×10×150mm -DC power jack socket 5.5x2.1mm -AC adapter 12V 4A -Thermal conductive sheet Silicone pad -Thermally conductive grease -Hex bolt M4*50mm

#Tools Required: -Soldering iron -Power drill -Metal drill bits (7mm, 5mm, 4mm) -Wood drill bit (11mm) -Aluminum saw

Reference links to the parts list and how to make them can be found in the manual.

Preliminary download link
