Summary

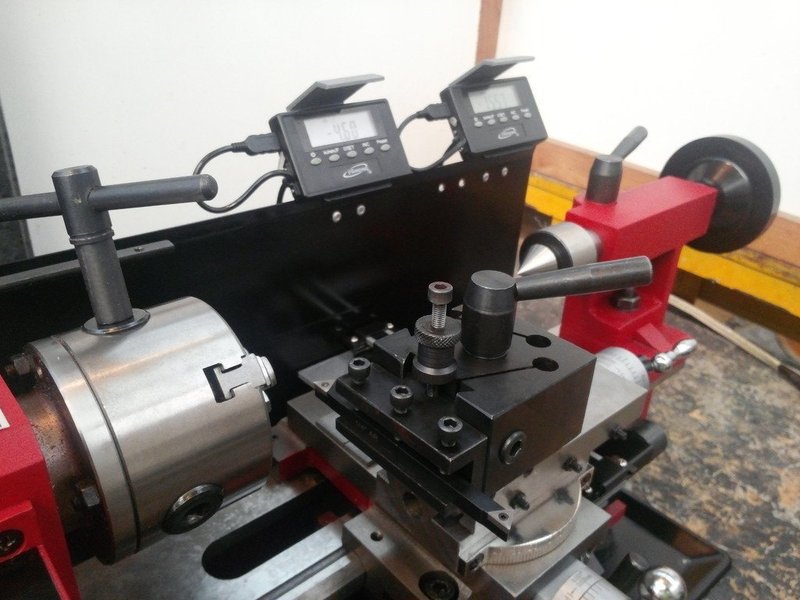

Brackets for installing the Igaging DRO system on the Harbor Freight 7x10 mini lathe.
Bracket 01: Carriage support for the z axis.
Bracket 02: Rear hardware support for the x axis.
Bracket 03:Front hardware support for x axis.
Bracket 04: Carriage support for x axis.
Support: Support for read DRO apparatus. (print twice).
Loading prints...
DRO (digital read out) Brackets and supports for HF 7x10 mini L
