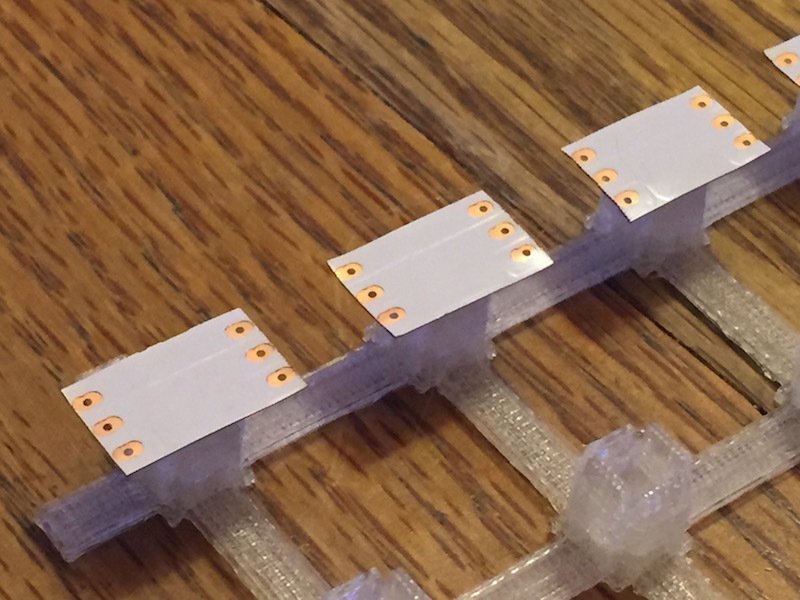

Designed this to assist with an LED matrix project, position the LED Align Single 25.4mm apart and it can build a custom alignment rig for LED cubes and matrixes. It fits both 5050 and 5mm round LEDs, they snap in pretty tight and keep things aligned while soldering. The 3x8 rig has 3 rows and 8 columns spaced at 1" intervals, it's for larger projects if you have a printer that can handle it.
