3D model description

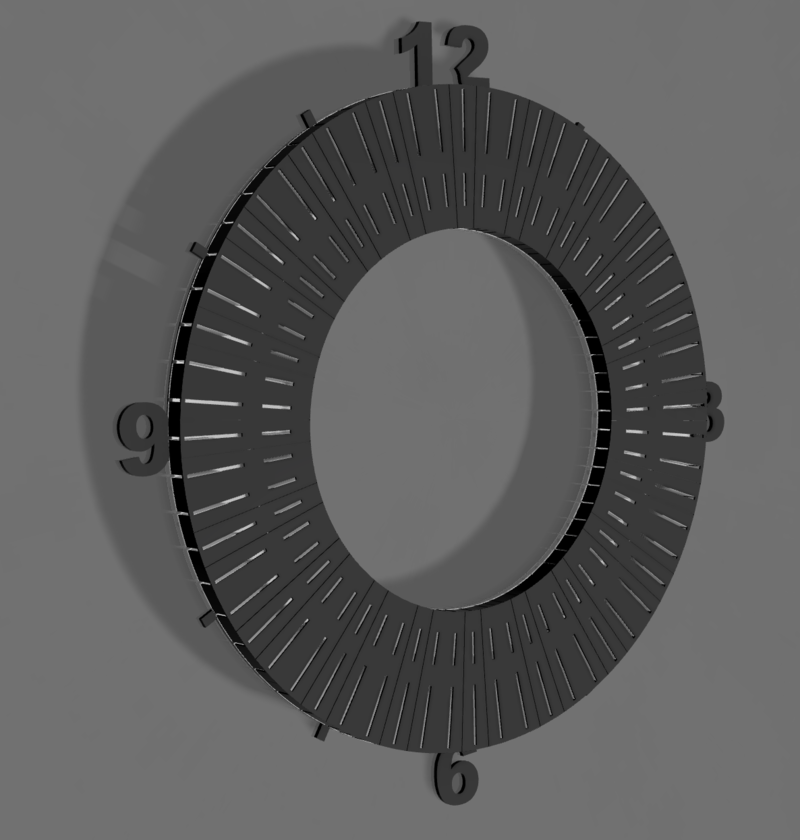

A unique LED wall clock containing 60 segments with slits corresponding to the minute and hour hands. It shows the time by lighting individual segments on the dial for minutes and hours.  Additionally, a glow appears on the wall in the form of a hands.

WS2812B are light sources.

Clock is designed to fit 60 leds/m stripes.

Leds should be put on internal and external side of vertical wall of bottom part.

3D printing settings

Dimension 41 cm.

No supports needed.

File set includes:

- upper part / cover - you need 20 single parts or 5 "4x parts";

- bottom part - you need 20 single parts or 5 "4x parts". Additionally there is bottom part with hook to hang clock on the wall.

- hour markers - 4 separate parts.

All elements are prepared for screwing with 2.5 mm screws.

Set of printed parts weighs approximately 500g
