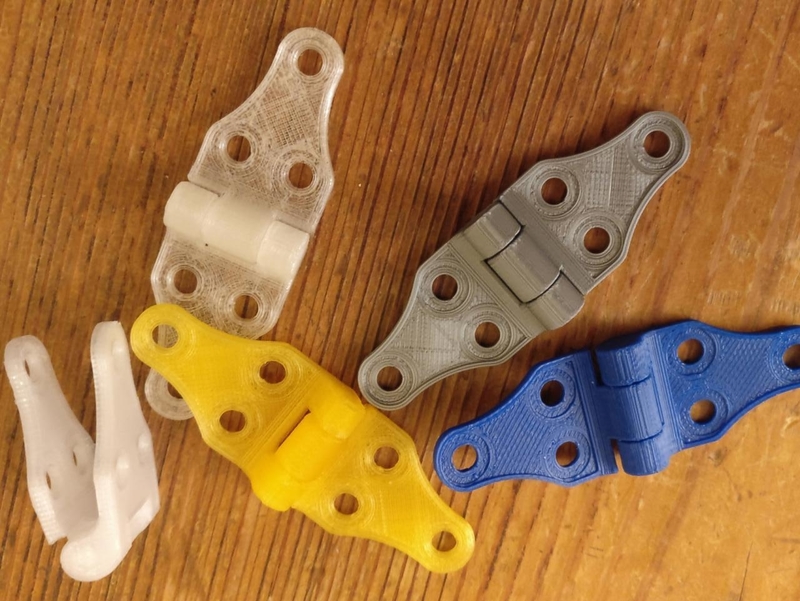

This is one of my first designs ever that I made when enclosing my very first printer back in 2016. I tried "real" metal hinges but they had too much play in them.
These are self-centering and actually quite durable. The "B" version can be used on a door and lifted off.
They are designed to be very tight. I have provided a slightly looser version named "+" if you have trouble getting them to work.
Screw holes are Ø4.5mm.
Also included is a Decorative Corner for the enclosure side panels.
Print with high cooling.
0.15 layer height.
I have printed these in most materials I have tried just for fun. PLA, ABS, PETG, Nylon, all work well.
Loading prints...
Hinges - print in place
