Pack of Michelangelos Low Poly Masterpieces
Free

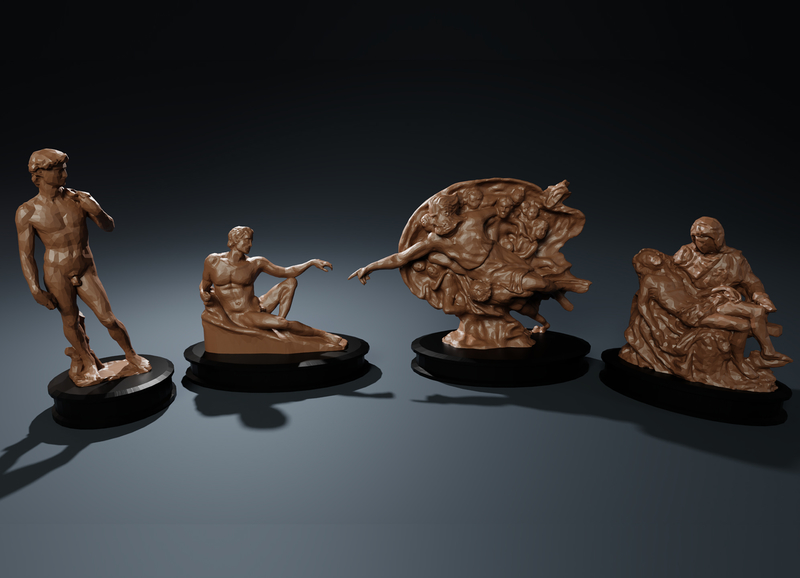

This pack contains statues representing 4 of Michelangelo's masterpieces "The creation of Adam", "David" and "Pieta".

The statue dimensions are the following (mm):

God Statue:

Height- 120

Width- 150

Depth- 65

Adam: Height- 98

Width- 122

Depth- 98

David Height- 126

Width- 59

Depth- 126

Pieta Height- 112

Width- 104

Depth- 61

Sculpting software used: Blender

Render method used for the previews: Cycles

Filament: PLA

Slicer used to 3D print: Ultimaker Cura

Settings I've used to 3D print:

Standard quality - 0.2mm

Infill - 20%

Supports (God)- This one you'll have to mess around to figure which are the best supports for you. Obviously, God's right arm need supports and since there are a lot of protuberant parts with this 3D representation it all depends which software, printer and filament you are using. You could use the automatic supports, but that would consume a lot of filament and time (and noone wants that)...so like I've said find the best way for your needs. Supports (Adam)- I've used regular Cura supports for the legs, left arm and the left side of the head. Supports (David)- I've used regular Cura supports for both arms and head, but you must find what are the perfect supports for your specific needs. Supports (Pieta)- This one you'll have to mess around to figure wich are the best supports for you. I believe that the bench where Virgin Mary is sitting on, her left arm, head and Jesus left foot require supports.You could use the automatic supports, but that would consume a lot of filament and time (and noone wants that)...so like I've said find the best way for your needs.

Speed - 50% first 20 layers and 100% for the rest

Plate Adhesion - Skirt

Cooling - Enabled

Travel - Retraction Enabled
