Model dimensions:
- length - 279 mm
- width - 124 mm
- height - 89.7 mm
- inner length of the ramp -175 mm
- inner width of the ramp - 102 mm
- length of the longest part - 179 mm
The race car and spare wheels are not included to the model.
The model consists of parts: Bars, Body part 1,2, Box, Jack Leg, Left fender, Right fender, Rims, Tires, Top frame Bars, Top frame, Winch.
Details “Bar” should be made from metal rods with diameter 1 mm and length 112 mm.
Details “Top frame Bar” should be made from metal rods with diameter 2 mm and length 55 mm.
The height from the ground to the Hitch - 16.8 mm. Hole diameter 1 mm.
During assembling use metal pins with diameter 2 mm.
Loading prints...

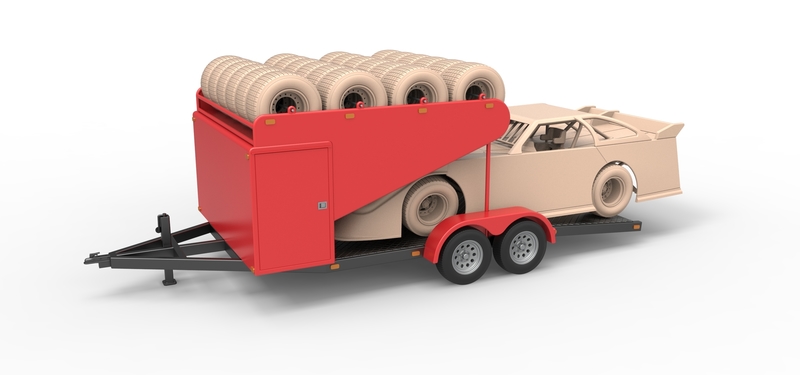

Vintage Open Trailer for Race Car 1:25
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
