The original fan duct is too large and short to mount on standard X carriage on MendelMax 1.5 printer.
This duct fit between the support of linear bearings of the X carriage
Print this thing in ABS for prevent the melting of the duct. Set infill at 40% The mounting is similar to the original duct.
This is the new version for E3D V6 of https://pinshape.com/items/12413-3d-printed-e3d-v5...
Thanks to: rrosinha (http://www.thingiverse.com/rrosinha/about) for the pleasant collaboration for the fitting test and the photos

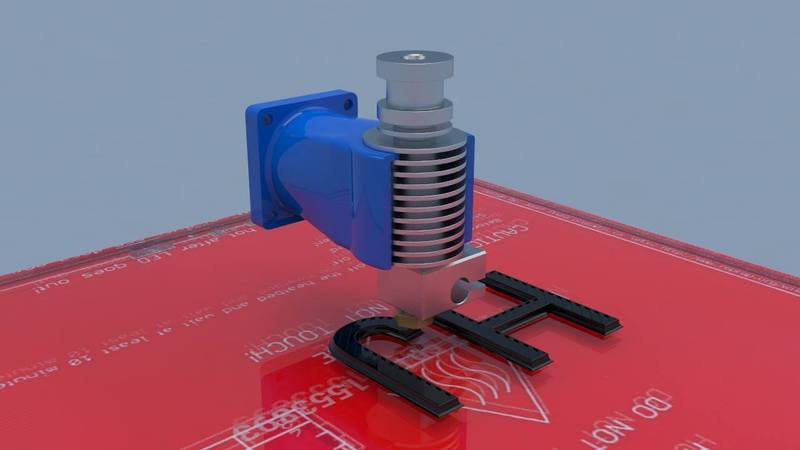

Mortadella DeMortadellis Design for the spectacular renders with my nickname on the heatedbed
Loading prints...
E3D V6 Fan Duct for MendelMax standard X Carriage
