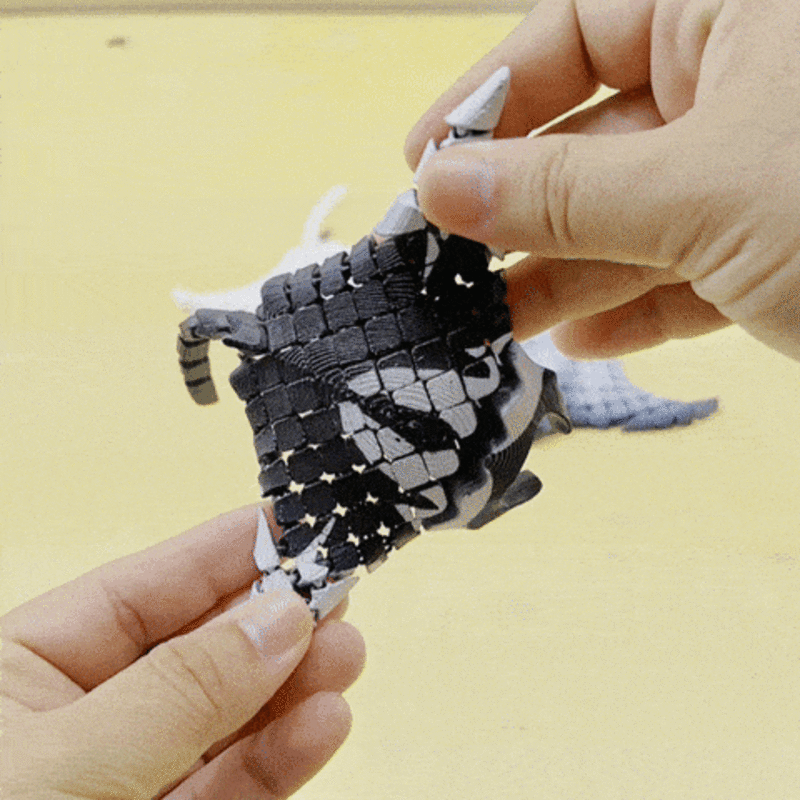

The Articulated Flexible Manta Ray ((Print in Place))

i put all my focus on making the hinges hidden

No Support is needed!!☺

it is really fun to handle

coloring was done using an airbrush , you can do it as well and its so easy to color cuz the shape is very simple and it can only be scaled up as much as you want , we dont recommend scaling it down (the limit is your printer capabilities)

Enjoy ❤

⭐⭐⭐⭐⭐ IMPORTANT NOTE For personal use only ,By downloading my models you have no right to sell or share any digital files or printed models of my designs.

all files in my page are designed by me only, i do multiple modification to make the file easy , low-cost and fast to 3d print for everyone

Follow me ♥

3D printing settings

A good first layer is mandatory for the print to succeed. Be sure your printer is calibrated and you have good bed adhesion. I recommend a slow and thick first layer (8 mm/s and 0.3 mm). Good layer cooling is also recommended, as it prevents curling and warping on overhangs.

We used a - 0.4mm nozzle - 0.2 mm layer height - 1% infill (zigzag) - 50 mm/s print speed - check infill before walls - 100% fan speed - No supports - check z hop when retracted
