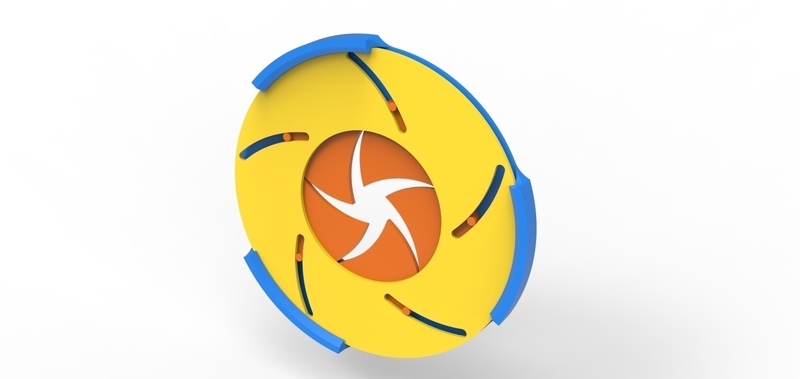

Iris Diaphragm Mechanism – 3D Printable & Easy to Assemble This 5-blade iris diaphragm mechanism has an outer diameter of 114mm and an inner diameter of 56mm. It opens and closes with a 30-degree rotation and is fully optimized for support-free 3D printing. The parts are precisely designed for smooth assembly and seamless operation.
Features:
Support-free design – Ideal for FDM and resin 3D printing Easy assembly – No special tools required Suitable for mechanical projects, interactive designs, and creative DIY applications
Note:
Please avoid scaling the model, as changing tolerances may affect its functionality.
Available File Formats:
STL & OBJ (Each part is saved separately) Other formats available as assembly.
