Rostock E3Dv6 CHINEESE 40mm FAN SHROUD & DUCT
Free

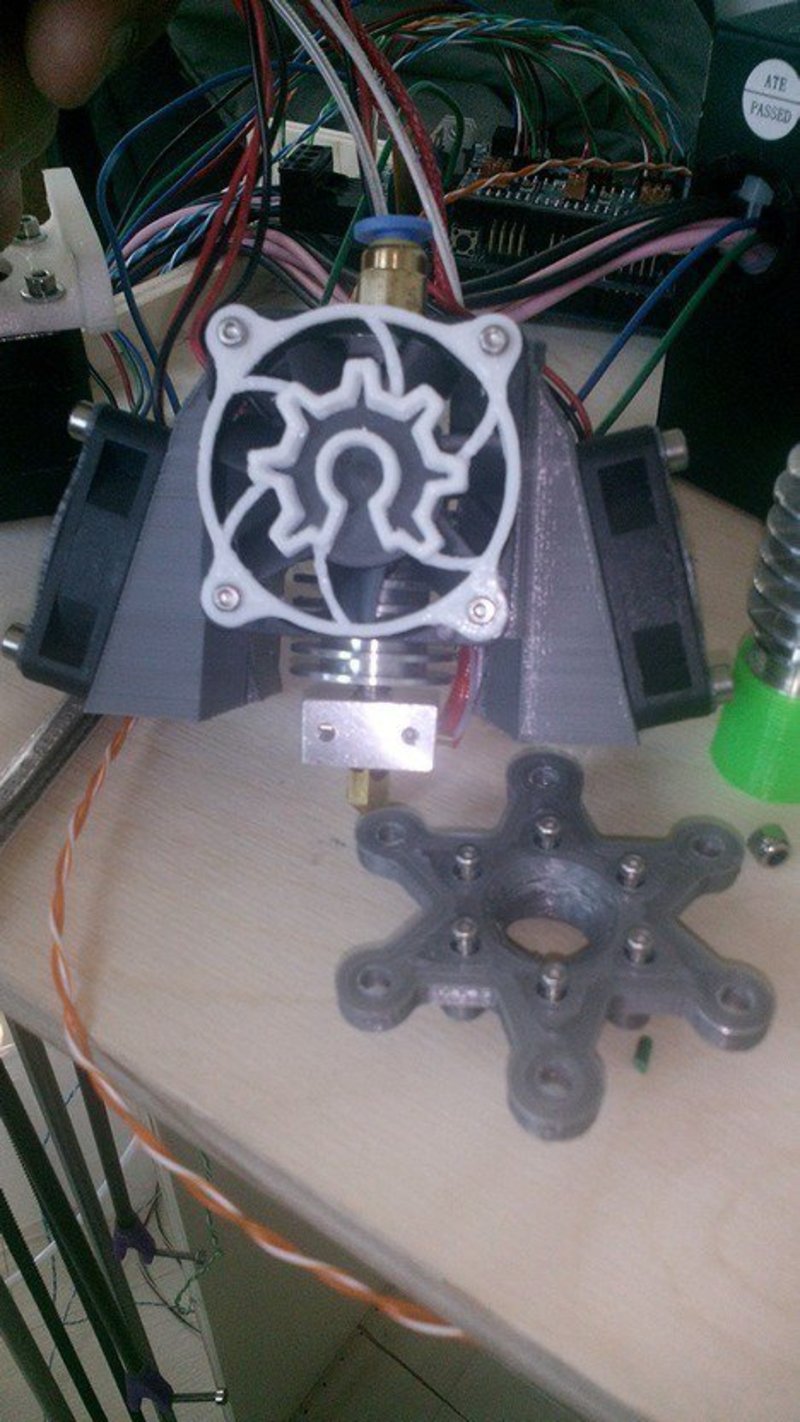

Summary A remixed version of beautiful Thing http://www.thingiverse.com/thing:711611 by ElMuchacho. I've recessed by 1mm the idler of the sink to fit into there a chineese version of the E3D v6, changed the diameter of the sink from 24 to 25mm and added a counter sink idler and a fixture for the Rostock platform effector, derived from my other design (http://www.thingiverse.com/thing:742358). Printed with Simplify3D and it works very well. Still assembling, because a fracture in my effector, DOH... Added a modified effector platform to mount the entire thing smoothly, with vase bolts.

Loading comments...

Loading prints...

Rostock E3Dv6 CHINEESE 40mm FAN SHROUD & DUCT

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

4 downloadable files:

View 3D
E3D_Bracket_extend.stl
STL Model
621.8 KB
File size
View 3D
E3D_Kossel_Retainer_25mm.stl
STL Model
3.6 MB
File size
View 3D
e3dv6_CHINA_hotend_fan_v3.stl
STL Model
995.8 KB
File size
View 3D
platform_ok.stl
STL Model
684.7 KB
File size
Free download - login required
Downloaded: 41 times
