Model dimensions:
- length - 190 mm
- width - 81 mm
- height - 63 mm
The model consists of parts: Air filter cap, Air filter, Body, Engine, Front bumper, Left exhaust pipes, Left side plate 1,2, Radiator, Right exhaust pipes, Right side plate 1,2, Rims, Seat, Shell, Shifter, Side wing left frame, Side wing right frame, Steering wheel, Tank, Tires, Top bar, Top wing.
Side wing crossbars should be made from metal rod or wire with diameter 1mm: 2 of them with length 26 mm and 2 - with 33 mm.
2 Top wing bars should be made from metal rod or wire with diameter 1mm with length 15.5 mm.
2 Side wing plates should be made from Plexiglas with thickness 1 mm. The size of the plates need to be cut in size of the slot in the Side wing frames. Or just print the “Side wing plate” and use it as template for cutting the Plexiglas plate.
During assembling use metal pins with diameter 2 mm.
Loading prints...

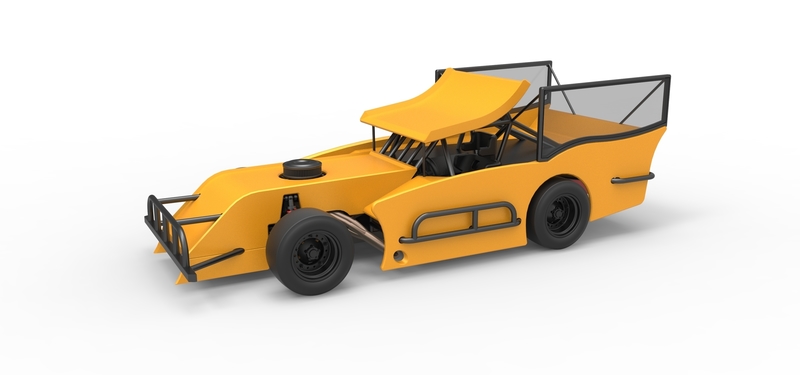

Outlaw Figure 8 Modified stock car Version 2 Scale 1:25
