Peterthinks' closed chain
Free

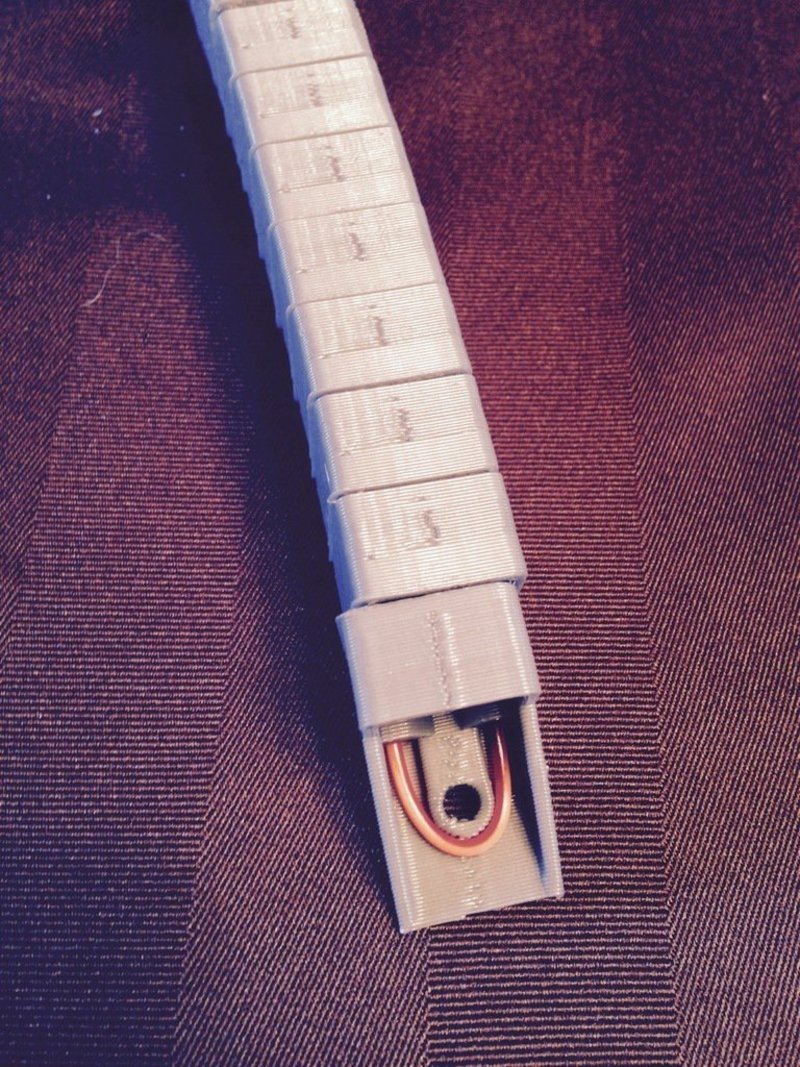

Summary Just like my other chain but it has an inner hood that shields the wires. This hides them from view and will protect them from debris when used for things like CNC mills. Plus it just looks tidy. Don't bother downloading the assembled version, it's just there so you can see it together in Thingview. The Sketchup files are included so you can mod the end parts as needed to fit your application. Instructions String it together with 16 AWG multi strand insulated wire. Tolerances are very tight with this. Remove any high spots with a knife so it assembles.

Loading comments...

Loading prints...

Peterthinks' closed chain

likes
2 collections
Creative Commons Attribution-NonCommercial-NoDerivatives

You can download and share as long as you credit the creator, but you cannot change the material or use it for commercial purposes.

CC BY-NC-ND Licensed under CC BY-NC-ND
Files Included

3 downloadable files:

View 3D
Peterthinks_closed_chain_parts.stl
STL Model
~1-5 MB
File size
View 3D
Peterthinks_closed_chain_group.stl
STL Model
~1-5 MB
File size
View 3D
Peterthinks_closed_chain_assembled.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 47 times
