Summary:

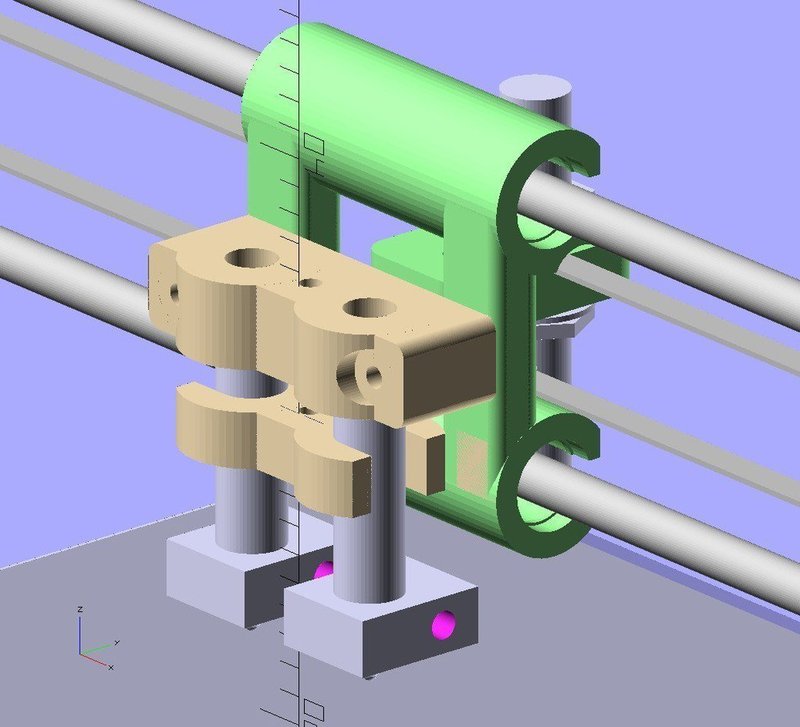

Double Hotend fix for Prusa Dual hotend support for Printer Prusa I3 with bowden.

• New version, lock with rounded corners.
• Made for object: http://www.thingiverse.com/thing:990595
• Made in OpenSCAD, you can change all.

Instructions:

Maybe you need adjust the OpenSCAD file for your hotend and create a new STL file.

I see lots of different hotend sizes but it will fit in:

• Hotend - 16mm diameter x 5mm height base and 12mm neck.
• Hotend - 16mm diameter x 5mm height base and 10mm neck.

You can just cut out 5mm in the hotend base or use bigger screws if you have space in case:

• Hotend - 16mm diameter x 10mm height base and 12mm neck.
• Hotend - 16mm diameter x 10mm height base and 10mm neck.

Attention:

The distance between the centers of the hotends is 30mm.

My hotends have 22mm in the head + cables and screws.

I believe you will not have problems until 25mm in the head. That is all.

You can download this design for free at thingiverse: http://www.thingiverse.com/jsirgado/designs

But you can help me to make more things like this, buy it.

The OpenSCAD file is just here, you can change all.
