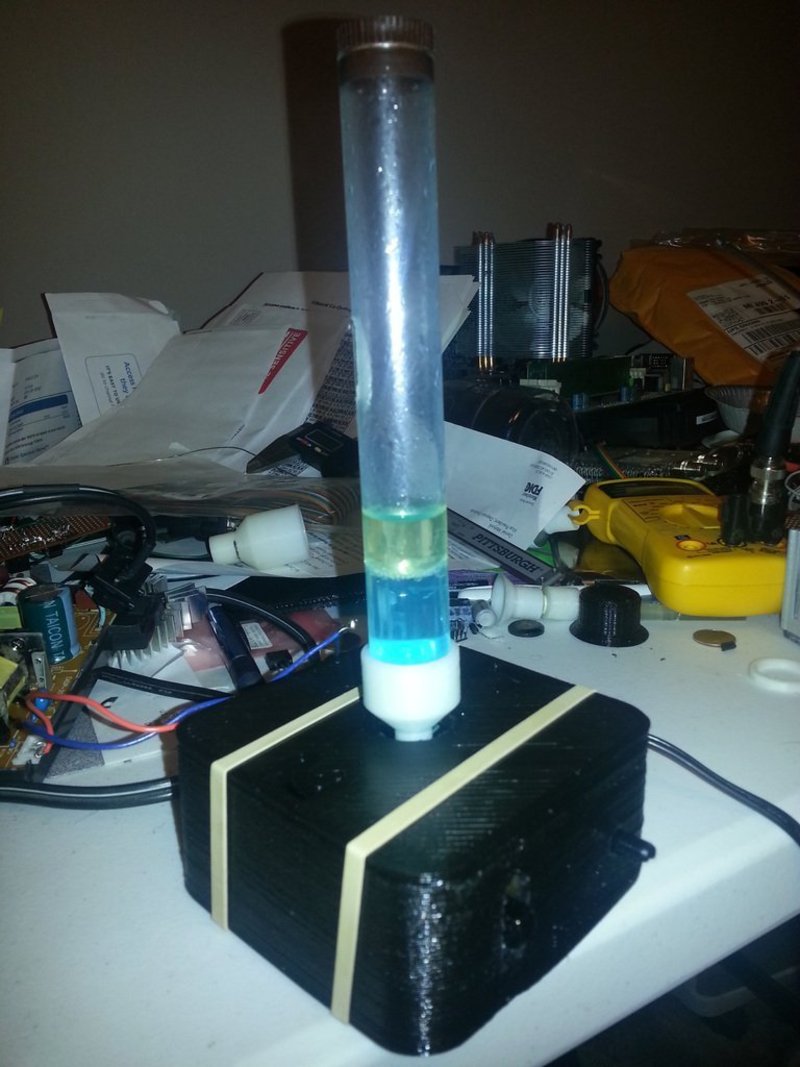

Vortex Mixer
Free
Summary This is piece of lab equipment that allows for even mixing of low viscosity fluids for chemistry and other lab test. this unit has the same functionality as a $325 machine but only costs $30. http://youtu.be/d1GfcmM6fQQ Instructions -12v Dc electric motor like this. http://www.amazon.com/gp/product/B00NN6EXV0/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1 -mechanical switch -single pole triple throw switch -LM317 with heat sink -power diode -47uF cap at 20V or greater -1K resistor -10k pot -printed parts -hot glue -12 to 20 volt power supply 16v at .5A is ideal. -Soldering iron and soldier -m5 x 10 bolt and nut -MR105ZZ Ball Bearing

Loading comments...

Loading prints...

Vortex Mixer

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

6 downloadable files:

View 3D
Vortex_Mixer_Coupler.stl
STL Model
15.3 KB
File size
View 3D
Vortex_Mixer_Cap.stl
STL Model
34.4 KB
File size
View 3D
Vortex_Mixer_Clamp.stl
STL Model
46.4 KB
File size
View 3D
Vortex_Mixer_Base.stl
STL Model
46.4 KB
File size
View 3D
Vortex_Mixer_Lid.stl
STL Model
36.4 KB
File size
View 3D
Vortex_Mixer_Cap_standalone.stl
STL Model
36.3 KB
File size
Free download - login required
Downloaded: 28 times
