Summary

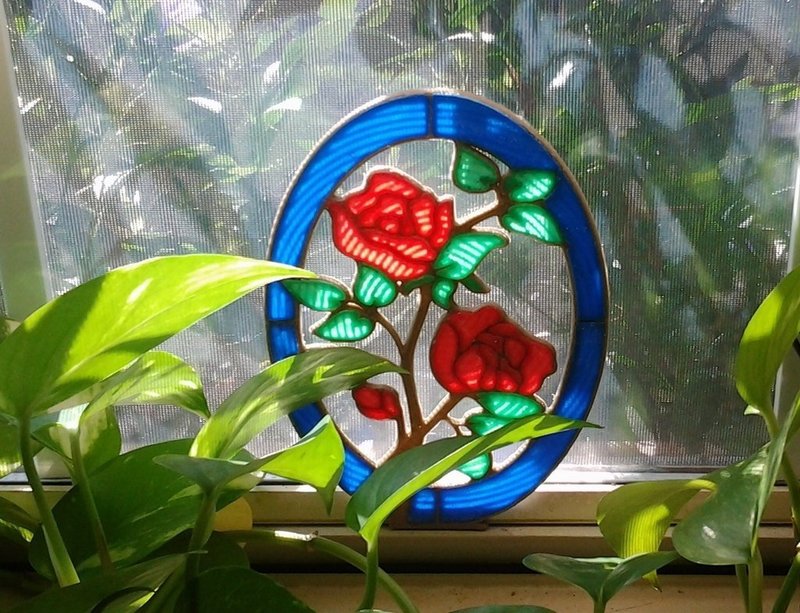

Rosette, faux stained glass.
Printed in ABS @.3mm.
Frame prints upright, glass prints upside down, flip over and insert into upright frame after printing. Note: To avoid confusion on these models, Its easier if you just remove 1 piece of glass at a time and glue into place.
.
Print Settings
Rafts: Doesn't MatterSupports: Doesn't Matter
Notes:
Print the frame with your normal profile. To print the glass, use the following profile:
3 perimeters, 2 bottoms, zero tops, 15 to 20 percent infill of your choice.
To get glass with no pattern, use zero infill.
Note: I used to use Acetone to glue glass pieces in place, but they have added something to
the product which makes it unusable now, leaves a residue, and will not dry. So to glue pieces in place, I have been using clear PVC ABS glue from the hardware store. Enables a nice clean finish to model.
