Kossel chocolate (paste) extruder conversion
Free

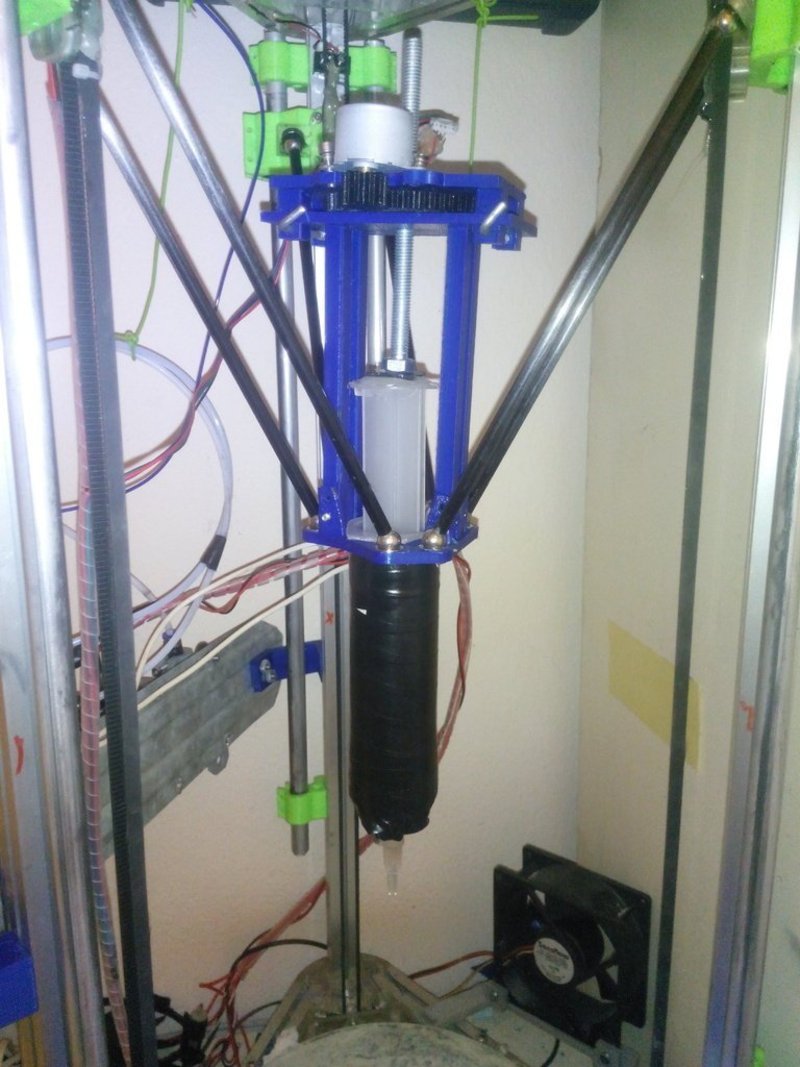

Summary Chocolate (pasta) extrusion module for Kossel 800. 28BYJ-48 converted to bipolar stepper and connected to extruders A4988 driver. http://www.aliexpress.com/item/28BYJ-48-Valve-Gear-Stepper-Motor-DC-12V-4-Phase-Step-Motor-Reduction/32295584569.html Big 100ML Syringe with nozzle http://www.aliexpress.com/item/New-2015-Reusable-100ML-Large-Big-Plastic-Hydroponics-Nutrient-Measuring-Syringe/32440818115.html 12V Carbon heater for prolonged chocolate print http://www.aliexpress.com/item/New-Arrival-12V-Carbon-Fiber-Heated-Pads-Winter-Seat-Warmer-Multifunction-electric-Cusion-heating-Mat-Blanket/32445358801.html Videos: First try: https://www.youtube.com/watch?v=SOMnSZ0KKSg First success: https://www.youtube.com/watch?v=-BkINgN53EQ&feature=youtu.be Print Settings Rafts: Doesn't MatterSupports: Doesn't MatterResolution: 0.2Infill: 50-100% Notes: Gears printed with Nylon Body printed with PLA

Loading comments...

Loading prints...

Kossel chocolate (paste) extruder conversion

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

5 downloadable files:

View 3D
PastaEffector.stl
STL Model
167.8 KB
File size
View 3D
PastaEffector-veticalColomns.stl
STL Model
83.3 KB
File size
View 3D
PastaEffector-motorDistancer.stl
STL Model
53.6 KB
File size
View 3D
PastaEffector-smallGear.stl
STL Model
507.2 KB
File size
View 3D
PastaEffector-largeGear.stl
STL Model
2.3 MB
File size
Free download - login required
Downloaded: 92 times
