FigRig universal mount for any camera 300 x 300  or larger bed r
Free

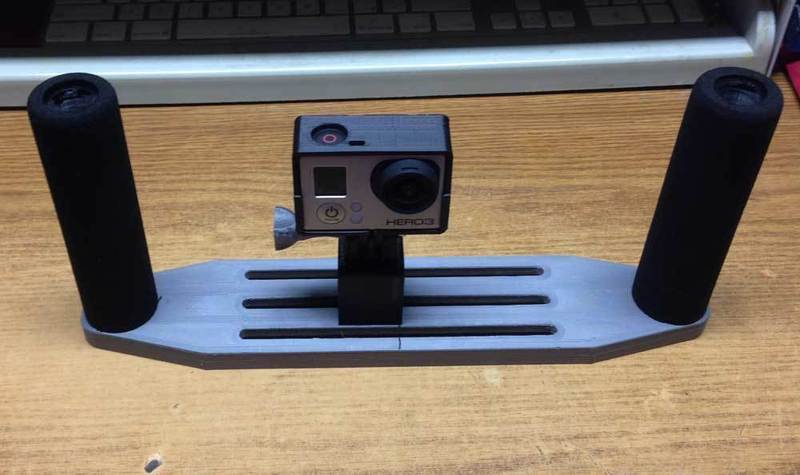

Summary This allows a 1/4-20 X 1/2" long screw to be inserted in the bottom and mount any camera with standard tripod mounting hole. You can use a GoPro as long as you have a tripod mount adapter as well. Requires a large bed and more than likely turn the base 45 degrees unless you have bigger than 300 x 300 bed. Print Settings Rafts: Doesn't MatterSupports: YesResolution: .10 mm to .20mmInfill: 60% or greater for the bottom. Solid for handles Notes: You will need a 1/4-20 x 1/2" screw for the camera mount and 2 x 1/4-20 x 3/4" screws to attach the handles. The support is only for the square inset for the handles, this was to assure they would not turn. Print the base with at least 60% infill for strength, even 100% would be great.

Loading comments...

Loading prints...

FigRig universal mount for any camera 300 x 300 or larger bed r

like
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

2 downloadable files:

View 3D
GoPro_Fig_Rig_Handle1.stl
STL Model
~1-5 MB
File size
View 3D
GoPro_Fig_Rig_Base2.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 62 times
