DIY Airboat
Free

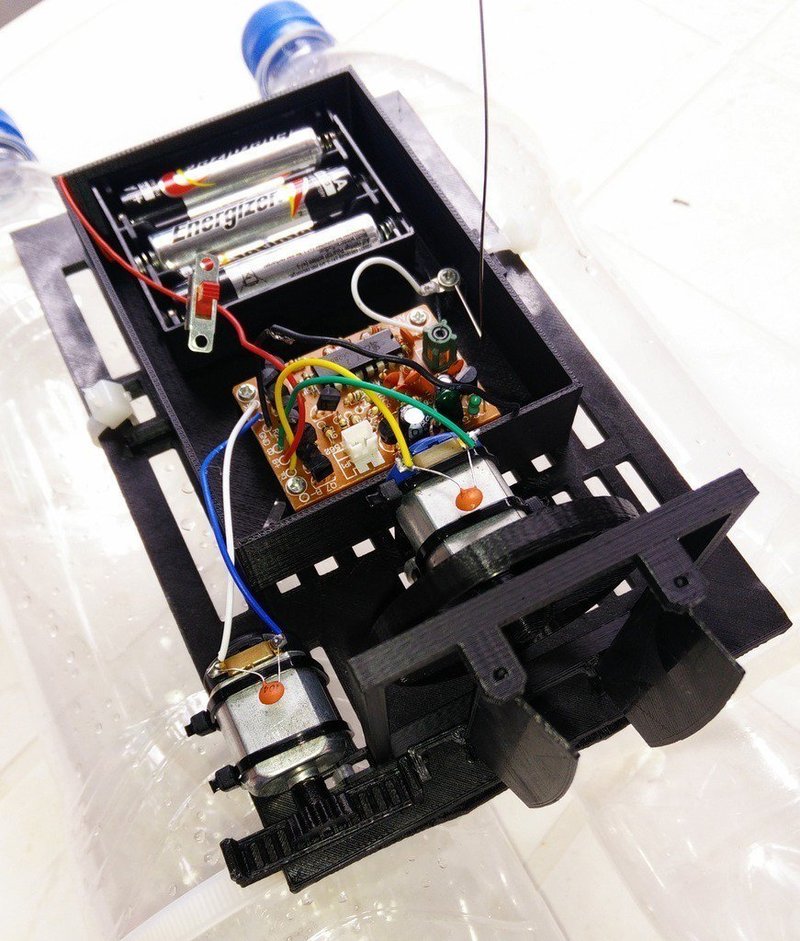

Summary I've been meaning to make a simple airboat for several years, in fact when I was younger I tried to build one unfortunately I never got around the remote control part. Bear in mind that this is still a work in progress. 20/07 - It works :-D. The direction mechanism needs some adjustments (fins, fins support, gear) to improve the turning radius, despite this it works rather well. 19/07 - Added revised versions for some of the parts. Some parts were a bit too flimsily and fixed some oversights. Currently printing the last part and assembling the airboat. 18/07 - Added a revised base version, should take less time to print and save a bit of filament. Also added support to the central arc. I'm printing all of these parts with a E3D v6 with a .4 nozzle and PLA You can get the propeller here: http://www.thingiverse.com/thing:116974 Instructions For this you will need two soda plastic bottles, I'm using two 1.5 liters bottles and a cheap rc car (I just bought the cheapest I could find, around 10€), tear it apart, you just need the eletronics bit. Also a couple of zip ties (with diferent lengths), to secure everything. Print two fins (fin.stl) The base arcs require supports Please print the latest versions of the parts (check for a _v?.stl, where the ? should be biggest number available for that part)

Loading comments...

Loading prints...

DIY Airboat

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

15 downloadable files:

View 3D
enginesupport.stl
STL Model
~1-5 MB
File size
View 3D
connector.stl
STL Model
~1-5 MB
File size
View 3D
fin.stl
STL Model
~1-5 MB
File size
View 3D
finssupport.stl
STL Model
~1-5 MB
File size
View 3D
gearbox.stl
STL Model
~1-5 MB
File size
View 3D
propellerimprovedfins.stl
STL Model
~1-5 MB
File size
View 3D
gear.stl
STL Model
~1-5 MB
File size
View 3D
case.stl
STL Model
~1-5 MB
File size
View 3D
base.stl
STL Model
~1-5 MB
File size
View 3D
base_v2.stl
STL Model
~1-5 MB
File size
View 3D
connector_v2.stl
STL Model
~1-5 MB
File size
View 3D
finssupport_v2.stl
STL Model
~1-5 MB
File size
View 3D
gearbox_v2.stl
STL Model
~1-5 MB
File size
View 3D
base_v3.stl
STL Model
~1-5 MB
File size
View 3D
case_v2.stl
STL Model
~1-5 MB
File size
