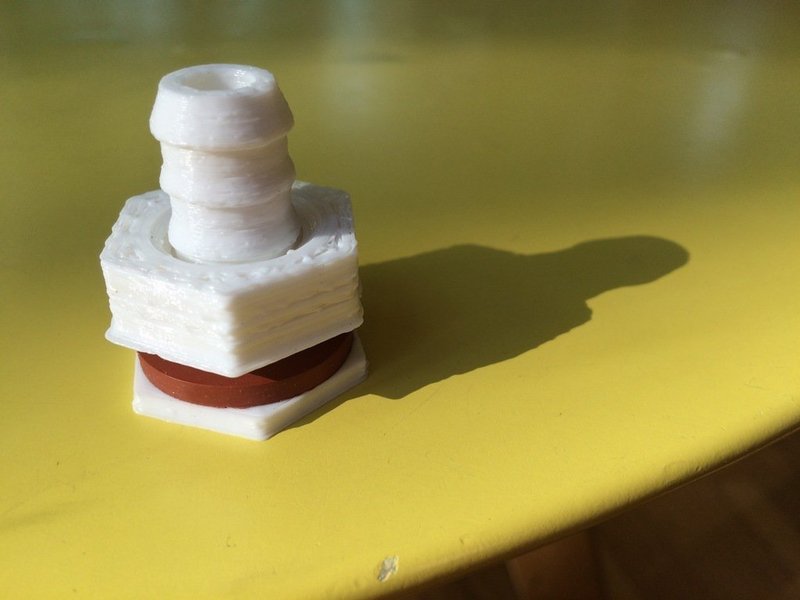

Bulkhead fitting for a 1/2" poly hose
Free
Summary This lets you make a connection from a 1/2" poly hose to a tank. Instructions You'll need to add a garden hose washer so that it won't leak. Print it with a 100% infill, otherwise the bottom of the connector may break off as you tighten down the nut. Update - I uploaded a slightly newer version (v05) that makes the area around the washer a little thicker, the hole in the middle a little smaller (so that the walls are thicker), and the nut a little smaller (so it puts less pressure on the threads when you tighten it down). A regular hose washer still fits it but you'll need to push to get it over the last bit of plastic. It is a lot stronger now but you should still only hand tighten (snug but not too tight).

Loading comments...

Loading prints...

Bulkhead fitting for a 1/2" poly hose

like
1 collection
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

2 downloadable files:

View 3D
HalfInchBarbedBulkhead_v04.stl
STL Model
705.3 KB
File size
View 3D
HalfInchBarbedBulkhead_v05.stl
STL Model
516.7 KB
File size
Free download - login required
Downloaded: 166 times
